CoreStation

INTELLIGENT BIOMETRIC CONTROLLER

Features Configuration Specification Accessory Peripherals Download Video
WHERE TO BUY share
Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control system. Designed to accommodate enterprise-level systems, the CoreStation can store up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With its high-performance, biometric readiness, Ethernet communication, CoreStation is also capable of offering the full features of the BioStar2 platform.

Features

Centralized Biometric Access Control

Centralized storage for user and access control data including fingerprint credentials

Complete controller functionalities with fingerprint matching

Multi-port interface for fingerprint /RF readers

Supports locks, sensors, RTE, and alarms

Enterprise-level Performance

Enterprise-level Performance

Improved Security

  • Centralized, secure storage of biometric and group access data

  • No Ethernet connection to the edge devices

  • No data stored on the edge devices

  • Secure communication via TLS 1.2

  • AES-256 encryption

System Flexibility and Scalability

  • Compatible with OSDP 2.0

  • Elevator control with OM-120

  • Supports up to 132 access points with DM-20 and Secure I/O 2
    (132 x Wiegand readers/64 x RS-485 readers)

  • 3rd party Wiegand reader

  • 4ch onboard reader control
    (Wiegand, RS-485, relays, inputs, outputs, power out, AUX)

  • Leverages existing wiring

Simultaneous matching speed up to 8 devices in 1 second
fingerprint reader suprema corestation

Configuration

corestation configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Capacity

  • Max. User

  • Max. Credential (1:N)

  • Max. Credential (1:1)

  • Max. Text Log

  • Max. Image Log

Capacity (Face)

  • Users (1:1)* Based on one face enrollment per user

  • Users (1:N)* Based on one face enrollment per user

General

  • CPU

  • Memory

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Tamper

  • Certificates

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • Wiegand

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

  • RS-485 Communication Protocol

  • Supervised Input

  • TTL Output

  • AUX Input

Electrical

  • Power

Connectivity

  • Max. Slave Devices (RS-485)

  • Max. Wiegand Devices

CS-40

10

100,0002)

500,0001)

5000000

Not supported

30,0003)

4,0003)

1.4 GHz Octa Core

8GB Flash + 1GB RAM

Not supported

Multi-color

Not supported

0°C ~ 50°C (32°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 95%, non-condensing

415 g

150 x 214 x 21

Optional (ENCR-10)

CE, KC, RoHS, REACH, WEEE, UL 294 Compliant

Not supported

10/100 Mbps, auto MDI/MDI-X

5 ch

4 ch

4 relays

Not supported

Not supported

Not supported

Not supported

OSDP V2 Compliant

8 ch(TTL input selectable)

8 ch

2 ch(AC POWER FAIL, TAMPER)

DC 12 V

Max. 64 devices (Max. 31 devices per port)

Max. 132 devices (with DM-20)

1)Max. Fingerprint Template: 1,000,000 (1:1)

2)Max. Fingerprint Template: 2,000,000 (1:N)

3)Only FaceStation 2 and FaceLite are available.

Peripheral Device

Download

  • 13

    2021.08

    Brochures
    CoreStation Case Study Brochure EN
    2.65 MB
    Preview Share

  • 31

    2021.05

    Manual
    CoreStation IG V1.05 UL EN
    4.93 MB
    Preview Share

  • 31

    2021.05

    Firmware
    CoreStation Firmware V1.5.1 EN
    64.69 MB
    Download Share

  • 04

    2020.12

    Firmware
    CoreStation UL 294 Compliant Package
    1.18 GB
    Download Share

  • 01

    2020.09

    Manual
    Warranty Policy EN
    182.92 KB
    Preview Share

  • 01

    2020.09

    Manual
    CoreStation QG V1.00 EN
    12.33 MB
    Preview Share

  • 09

    2019.12

    Manual

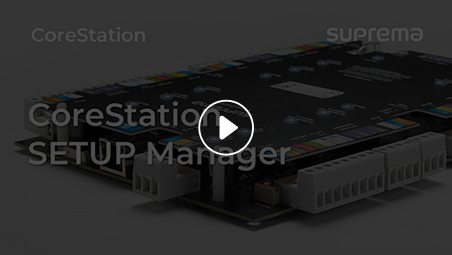

    CoreStation Setup Manager UG V1.00 EN
    3.43 MB
    Preview Share

  • 31

    2019.01

    Product Images
    CoreStation Image (Low Res)
    23.61 MB
    Download Share

  • 31

    2019.01

    Product Images
    CoreStation Image (High Res)
    58.12 MB
    Download Share

  • 19

    2018.11

    Brochures
    CoreStation Brochure EN
    1.61 MB
    Preview Share
Compact Fingerprint Reader

BioEntry R2

Outdoor Compact RFID Reader

XPass D2

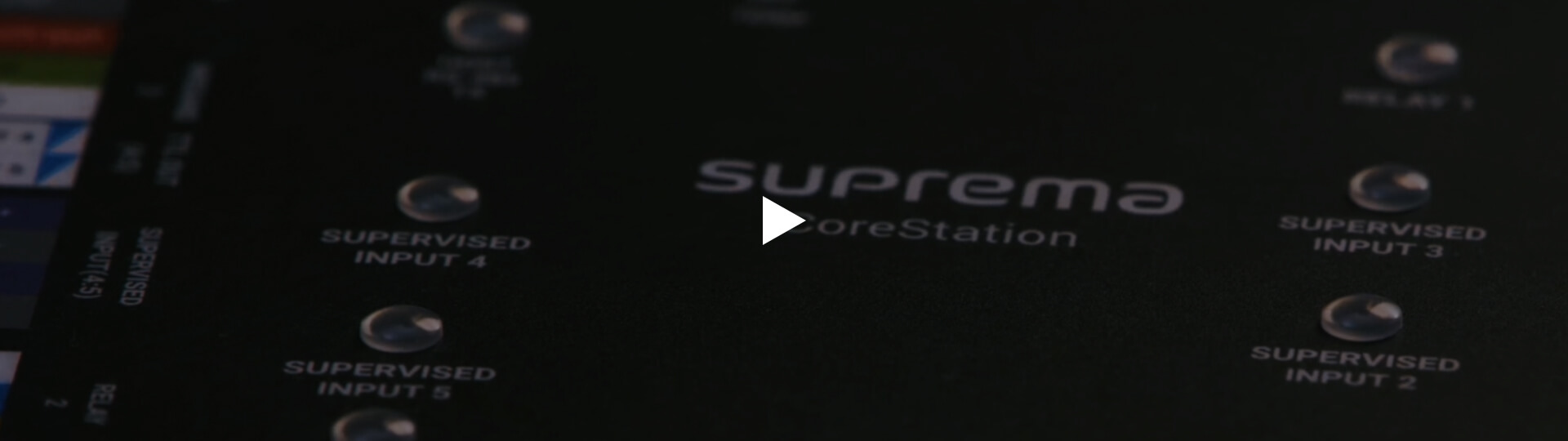

Video
