Secure Module

Compact Secure Single Door I/O Module

Secure Module provides secure door control via encrypted communication when combined with other Suprema devices. Its ultra-compact form factor allows it to be installed and used in different environments.

Features

Secure Module Function

  • Enhanced security due to encrypted communication

  • Easy installation and low cost

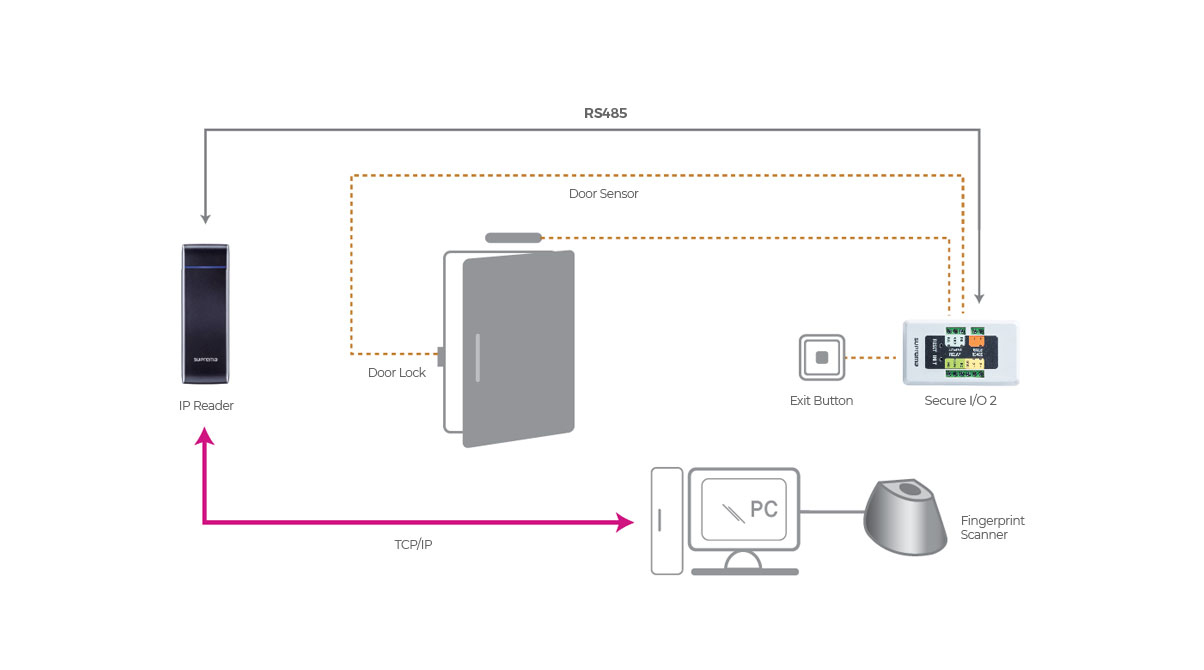

Configuration

secure model configuration

Specification

Scroll left/right

Scroll left/right

Model Name

General

  • CPU

  • Memory

  • LED

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Certifications

Interface

  • RS-485

  • RS-485 Communication Protocol

  • TTL Input

  • Relay

Electrical

  • Power

SIO2

Cortex M3 72MHz

128 KB Flash + 20 KB RAM

Multi-Color

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

37 g

36 x 65 x 18 (mm)

CE, UKCA, KC, FCC, RoHS, REACH, WEEE, ETL Listed to UL 294

1 ch

OSDP V2 Compliant

2 ch

1 relay

Voltage: 12 Vdc
Current: Max. 0.5 A
