FaceStation F2

 Fusion Multimodal Terminal

FaceStation F2

Fusion Multimodal Terminal

Suprema FaceStation F2 is a fusion multimodal terminal with unmatched facial authentication performance.
Experience the exceptional authentication accuracy and anti-spoofing performance achieved by Suprema’s unique Fusion technology.
Unrivaled
Facial Authentication
Performance
Best-in-class
Multimodal Device
Contactless Solution
for the New Normal
Robust Device Security
and Data Encryption

Features

Unrivaled Facial Authentication Performance
by Fusion Matching
Suprema’s Fusion Matching technology combines the IR and visual facial authentication with unique deep learning algorithm to achieve exceptional authentication accuracy and industry’s best anti-spoofing performance.
False Acceptance Rate (FAR) of 1 in 10 billion
Best-in-Class Multimodal with Various Credentials
Offering credential options of face, fingerprint, cards and mobile access, FaceStation F2 is the best-in-class multimodal device in the industry. It also supports dual frequency access cards, NFC and BLE-based Mobile Access Cards as well as Template on Card that allows authentication via biometric data stored in cards.

Deep learning-based AI algorithm applied for live face/fingerprint detection.

Contactless solution for new standards of safety and hygiene
FaceStation F2 meets the needs of the post-pandemic world with features like remote user enrollment, detection of users without masks and facial authentication of users wearing masks. When combined with Suprema Thermal Camera, FaceStation F2 can identify people with elevated skin temperature
Robust Device Security and Data Encryption
With the highest level of device security, FaceStation F2 not only encrypts all biometric credentials and personal information but also protects the data with secure boot process.
Enterprise-level Memory Capacity
FaceStation F2’s massive memory capacity can easily handle the large number of users in enterprise environment. FaceStation F2 can accommodate up to 100,000 users*, 50,000 face image logs and 5,000,000 text logs.
USERS 100,000
IMAGE LOGS 50,000
TEXT LOGS 5,000,000
100,000 users with fingerprint authentication and 50,000 users with facial authentication
Improved User Convenience
FaceStation F2 provides improved user convenience with 7“ LCD screen and walkthrough facial authentication. Users no longer have to stand still and fit faces to a predefined area. Recognition distance range has also been increased to 50cm ~ 130cm.
Suitable for Various Environment
Thanks to its IR recognition technology, FaceStation F2 can authenticate faces under dim lighting, allowing uninterrupted facial authentication in all indoor lighting conditions. With IP65 rating, FaceStation F2 is dust-proof, waterproof and easy to maintain.

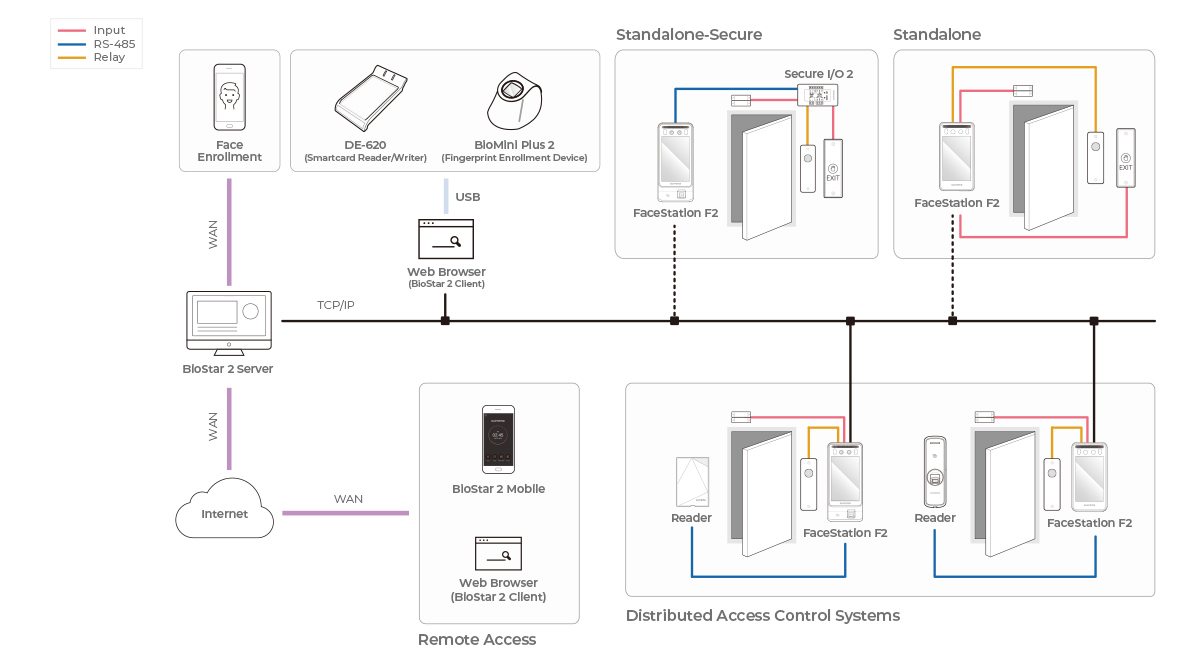

Configuration

FaceStation Configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • Biometrics

  • RF Option

  • RF read range 2)

  • Mobile Card

Protections

  • IP rating

Face

  • Authentication Distance 3)

  • Authentication Height

  • Matching speed

  • Live Face Detection

Fingerprint

  • Image dimension

  • Resolution

  • Template

  • Extractor / Matcher

  • Sensor Certificates

  • Live Fingerprint Detection

Capacity

  • Max. User

  • Max. Credential (1:N)

  • Max. Credential (1:1)

  • Max. Text Log

  • Max. Image Log

General

  • CPU

  • Memory

  • Crypto Chip

  • LCD Type

  • LCD Resolution

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Certifications

Interface

  • Ethernet

  • RS-485

  • RS-485 Communication Protocol

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • Tamper

Electrical

  • Power

FSF2-DB

Face

125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa

EM/MIFARE/DESFire: 50 mm, FeliCa: 30 mm

NFC, BLE

IP65

0.3 ~ 1.3 m

1.4 ~ 1.9 m

Within 0.5 seconds

Supported

N/A

N/A

N/A

N/A

N/A

N/A

100,0004)

Face: 50,000
Fingerprint: 100,0005)

Face: 100,000 / Card: 100,000 / PIN: 100,000
Fingerprint: 100,0005)

5,000,000

50,000

1.8 GHz Dual Core + 1.4 GHz Quad Core

16GB Flash + 2GB RAM

Supported

7” IPS color LCD

800 x 1280 pixels

16bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C

0 % ~ 80 %, non-condensing

0 % ~ 90 %, non-condensing

Device: 585g
Bracket: 181g (Including washer and bolt)

119.8 x 233 x 23.5 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input / 1 ch Output (Selectable)

2 ch Inputs

1 Relay

USB 2.0 (Host)

Supported

Voltage: 12 Vdc, Current: Max. 2.1 A
Voltage: 24 Vdc, Current: Max. 1 A

FSF2-AB

Face

125 kHz EM, HID Prox & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos

EM/MIFARE/DESFire/HID iCLASS: 50 mm, FeliCa/HID Prox: 30 mm

NFC, BLE

IP65

0.3 ~ 1.3 m

1.4 ~ 1.9 m

Within 0.5 seconds

Supported

N/A

N/A

N/A

N/A

N/A

N/A

100,0004)

Face: 50,000
Fingerprint: 100,0005)

Face: 100,000 / Card: 100,000 / PIN: 100,000
Fingerprint: 100,0005)

5,000,000

50,000

1.8 GHz Dual Core + 1.4 GHz Quad Core

16GB Flash + 2GB RAM

Supported

7” IPS color LCD

800 x 1280 pixels

16bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C

0 % ~ 80 %, non-condensing

0 % ~ 90 %, non-condensing

Device: 585g
Bracket: 181g (Including washer and bolt)

119.8 x 233 x 23.5 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input / 1 ch Output (Selectable)

2 ch Inputs

1 Relay

USB 2.0 (Host)

Supported

Voltage: 12 Vdc, Current: Max. 2.1 A
Voltage: 24 Vdc, Current: Max. 1 A

FSF2-ODB

Face, Fingerprint

125 kHz EM & 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/ EV31), FeliCa

EM/MIFARE/DESFire: 50 mm, FeliCa: 30 mm

NFC, BLE

IP65

0.3 ~ 1.3 m

1.4 ~ 1.9 m

Within 0.5 seconds

Supported

300 x 400 pixels

500 dpi

SUPREMA / ISO19794-2, ANSI-378

MINEX certified and compliant

FBI PIV and FBI Mobile ID FAP20

Supported (SW-based)

100,0004)

Face: 50,000
Fingerprint: 100,000

Face: 100,000 / Card: 100,000 / PIN: 100,000
Fingerprint: 100,000

5,000,000

50,000

1.8 GHz Dual Core + 1.4 GHz Quad Core

16GB Flash + 2GB RAM

Supported

7” IPS color LCD

800 x 1280 pixels

16bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C

0 % ~ 80 %, non-condensing

0 % ~ 90 %, non-condensing

Device: 670g
Bracket: 205g (Including washer and bolt)

119.8 x 268.3 x 49.6 (Bottom) / 23.5 (Top) (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, ANATEL, SIG, RoHS, REACH, WEEE

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input / 1 ch Output (Selectable)

2 ch Inputs

1 Relay

USB 2.0 (Host)

Supported

Voltage: 12 Vdc, Current: Max. 2.1 A
Voltage: 24 Vdc, Current: Max. 1 A

1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with
FaceStation F2.

2)RF read range will vary depending on installation environment.

3)The minimum facial authentication distance shown is the default setting for the product, and the recommended facial authentication distance is 0.5 to 1.3 m.

4)The number of users registered without any credential data.

5)If a device with a fingerprint sensor is connected as a slave, the slave device can be used for fingerprint authentication.

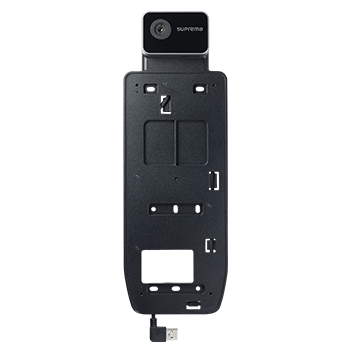

Peripheral Device
