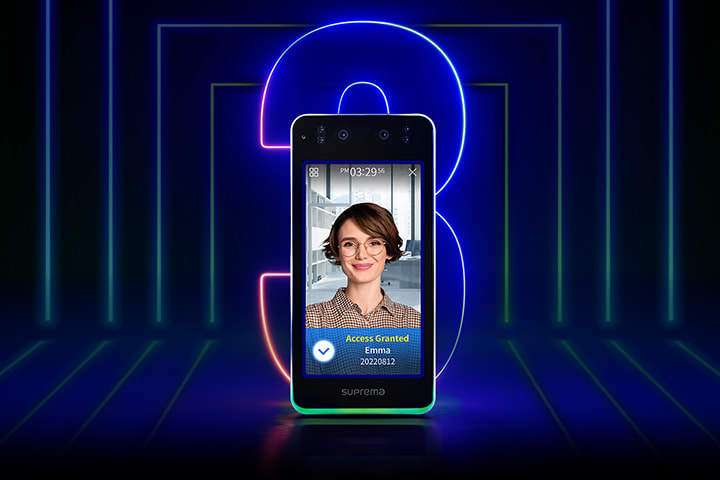

BioStation 3

 The New Door Access Experience

play_arrowPlay the full video
    BioStation 3 sets a new standard in access control, providing a new door access experience that enables improved security across all doors, for organizations of all sizes. This terminal is smaller than previous model, yet it has the largest variety of features.

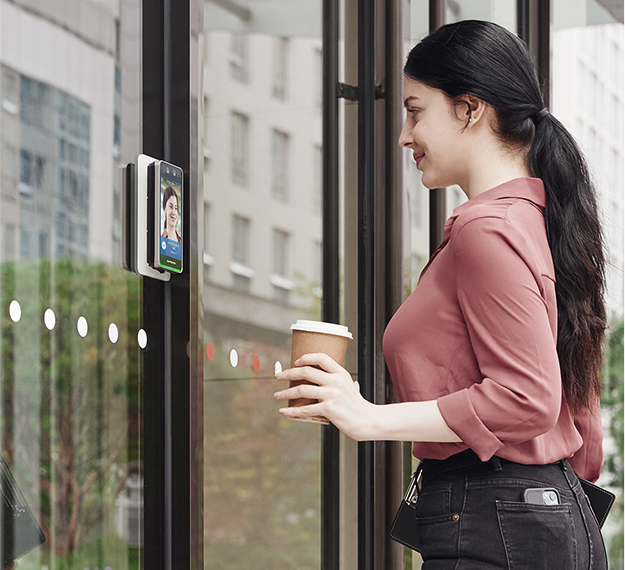

Multiple Contactless Access Methods

BioStation 3 provides multiple credential options. Choose from the most convenient authentication methods
— all contactless and perfectly compatible with a post-pandemic world.

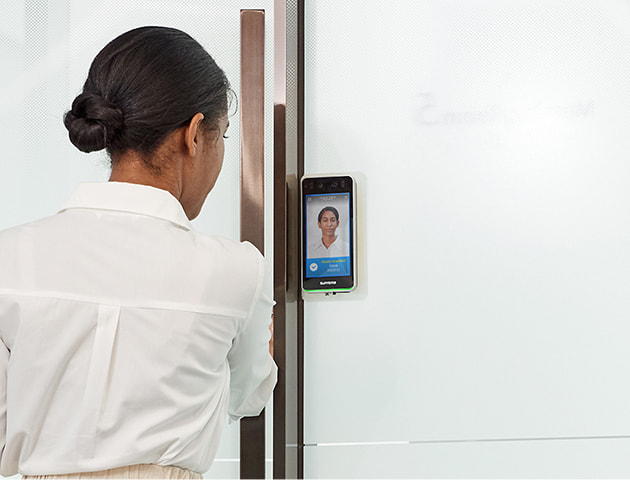

  • Facial Authentication

  • Mobile Access

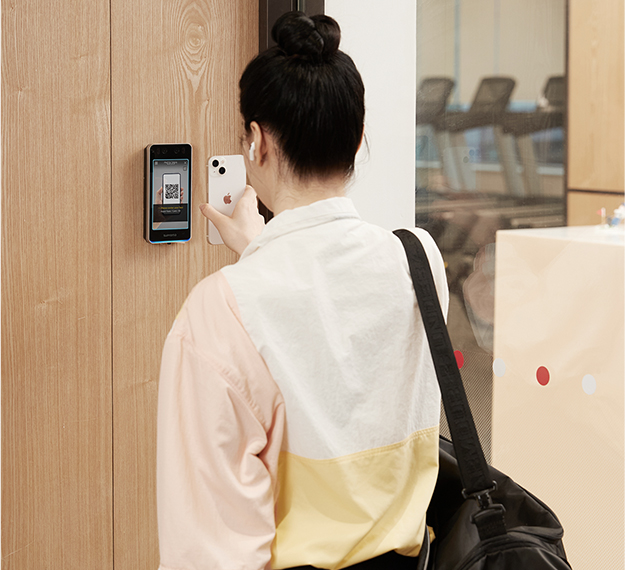

  • QR and Barcode

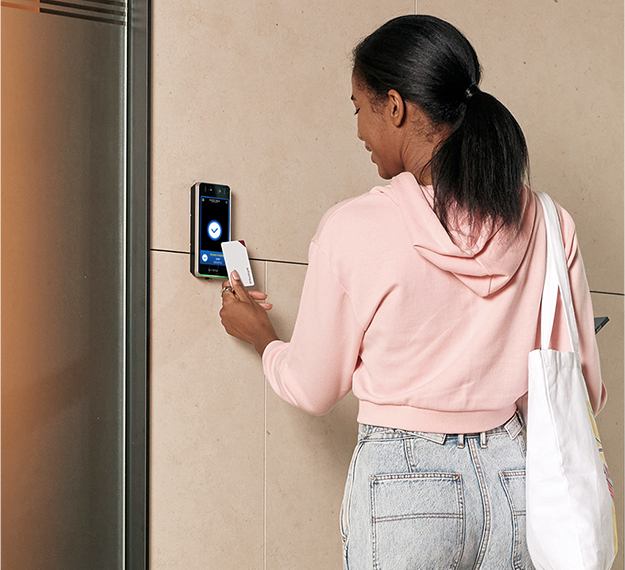

  • RFID Card

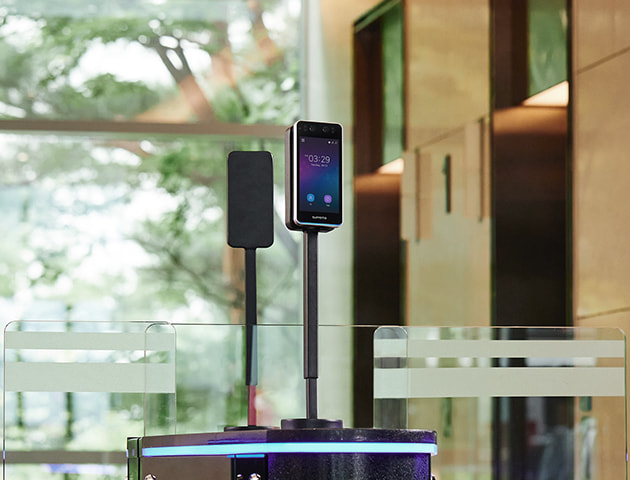

Perfect for Any Door,
Any Business

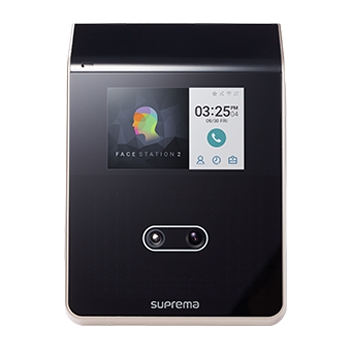

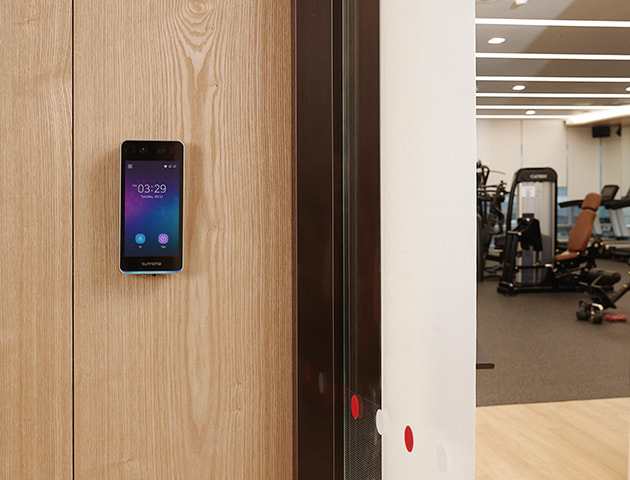

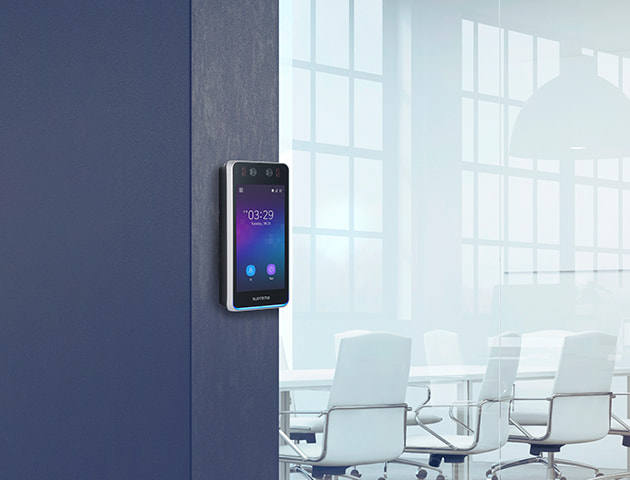

BioStation 3 is easy to install and scale in any environment, from small offices to massive enterprise buildings. It features a 47% size reduction compared to Suprema’s previous bestselling facial authentication terminal, FaceStation F2.

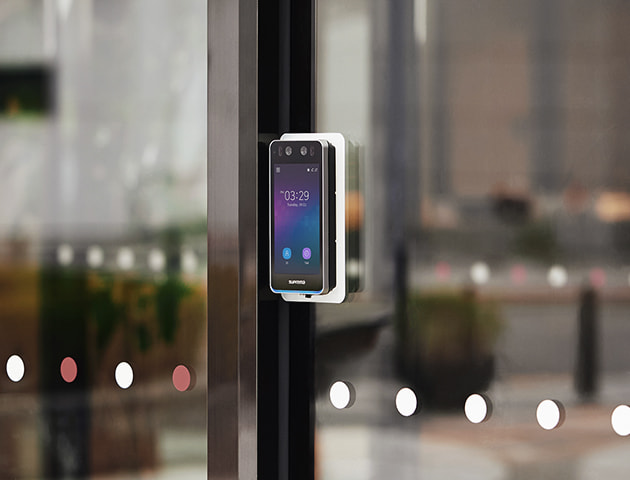

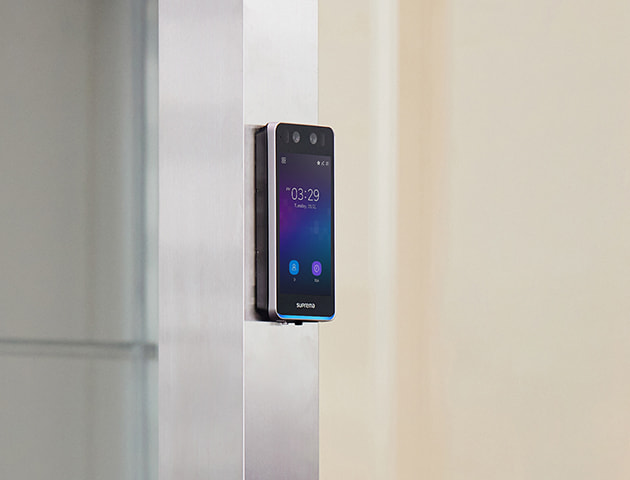

The slim, compact design of the BioStation 3 terminal is compatible with any kind of door. It is also suitable for both indoor and outdoor environments, thanks to its robust IP65 and IK06 ratings.*

  • Quick Installation

    POE+ allows connection with both internet and a power supply using a single wire

  • Less Wiring

    Wi-Fi enables wireless internet connection for communication with BioStar 2

  • Easy to Connect

    A custom USB host connected to a SIM slot, RS232, etc. helps simplify new add-on features

*Refer to the installation guide for details

AI-Based Facial Authentication with Higher Efficiency and Performance​

Fast and Smart AI Optimized for Facial Authentication Access

BioStation 3's NPU-optimized AI algorithm offers the highest standards in facial authentication accuracy and speed.

Nonstop Pass Trough with 0.2 Second Matching Speed

Accurately and rapidly recognize moving faces in high-traffic areas within 0.2 seconds

Compatible with All Ethnicities and Facial Variations

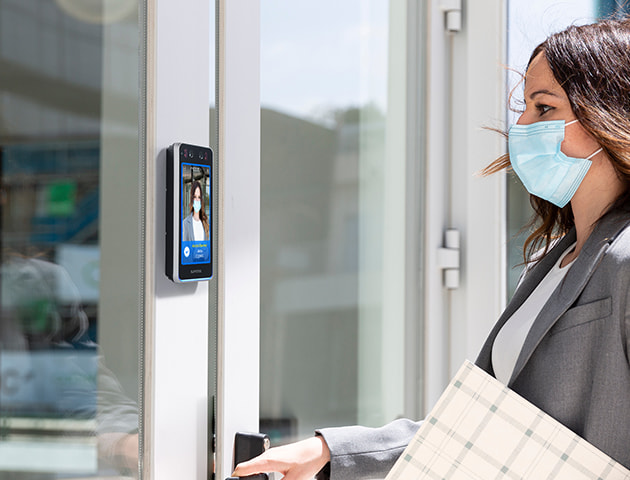

Use dynamic face templates to increase matching performance for people of any ethnicity and faces wearing masks, glasses, hats, beards, niqabs, various hairstyles, etc.

Protected Against Facial Spoofing

Detect fake faces, images, and photos to safeguard against facial spoofing

Highly Accurate in Any Environment

A high-performance AI algorithm provides accurate facial authentication in any lighting, brightness, dim or backlit environment. This is made possible through an AI algorithm based on Suprema’s unmatched technology and database optimized to access authentication accumulated for over 20 years.

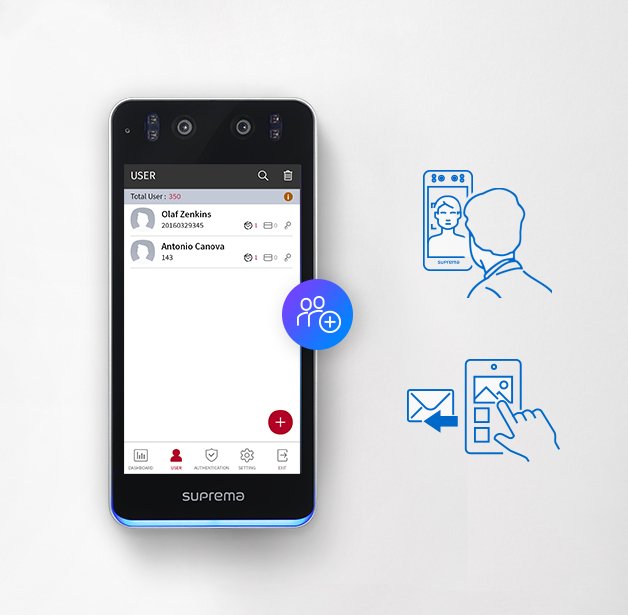

Quick and Easy Self Enrollment of Face Credentials

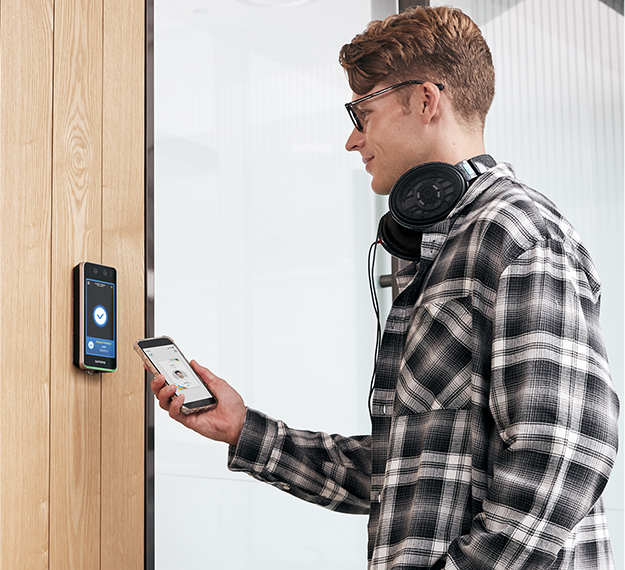

BioStation 3 was designed with convenience in mind — users can enroll their face credentials by themselves on the device, and also by using a photo saved on their mobile device.

The Highest Level of Privacy Protection

BioStation 3 takes data protection very seriously.

ISO/IEC 27001 and 27701 certified
to protect biometric data
and user privacy

Designed to comply with
GDPR(General Data Protection Regulation),
one of the strictest privacy regulations

Embedded with Secure Element (SE)
and Secure Boot to protect
against cyberattacks

Completed penetration testing
through a verified institution

Provided with
'Face Template on Mobile'* credential

*Available by the first half of 2023

What is
‘Face Template on Mobile’?
– Own Your Own Data

Suprema’s exclusive authentication method ‘Face Template on Mobile’ lets users enroll into an access control system and store their face profile directly on their own mobile devices. This gives the users complete control over their own ID and their privacy. Users’ biometric data is not stored in company databases.

Easy Communication Across All Access Points

BioStation 3 enables integrated management over an entire access control system.


Access control is made easy with BioStation 3: Use VoIP Intercom and RTSP (Real Time Streaming Protocol)-based video monitoring to manage visitor access anytime and anywhere. VoIP Intercom enables seamless communication with all doors, and real-time video monitoring boosts security, ensuring that all access points are always in control.

#SavethePlanet🌎,
and Save on Costs

Did you know that annual production of RFID cards requires plastic equal in mass to about 900 family sedans? The cards, lanyards and card holders are difficult to recycle, with most ending up in landfills or oceans.

BioStation 3 offers multiple credential options to replace RFID cards. Suprema’s contactless credentials completely remove the cost, labor and environmental impact of issuing physical RFID cards.

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • Biometrics

  • RF Option

  • RF read range 2)

  • Mobile Card

  • QR/Barcode 3)

  • Scrambled Keypad (PIN)

Protections

  • IP rating

  • IK rating

Face

  • Authentication Distance 5)

  • Authentication Height

  • Matching speed

  • Live Face Detection

Capacity

  • Max. User

  • Max. Credential (1:N)

  • Max. Credential (1:1)

  • Max. Text Log

  • Max. Image Log

General

  • CPU

  • Memory

  • Crypto Chip

  • LCD Type

  • LCD Resolution

  • Camera

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Certifications

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • RS-485 Communication Protocol

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • USB expansion port

  • PoE+

  • Intercom

  • RTSP
    (Real Time Streaming Protocol)

  • Tamper

Electrical

  • Power

BS3-DB

Face

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa

EM/MIFARE/DESFire: 30 mm, FeliCa: 15 mm

NFC, BLE

Supported4)

Supported

IP65

IK06

0.3 ~ 1.0 m

1.4 ~ 1.9 m

Within 0.2 seconds

Supported

100,0006)

Face: 50,000

Face: 100,000 / Card: 100,000 / PIN: 100,000

5,000,000

50,000

1.5GHz Quad Core

32GB Flash + 4GB RAM

Supported

5.5" IPS color LCD

720 x 1280 pixels

2MP x 2EA (Visual, IR)

16bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40 °C ~ 70 °C

0% ~ 80%, non-condensing

0 % ~ 90 %, non-condensing

Device: 370g
Bracket (Including washer and bolt): 90g

82.5 x 171 x 23.4 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE, MIC, TELEC

Not supported

Supported (10/100/1000 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input, 1 ch Output

3ch Inputs

1 Relay

USB 2.0 (Host)

Supported

Not supported

Supported

Supported

Supported

Voltage: 12 Vdc, Current: Max. 1 A
Voltage: 24 Vdc, Current: Max. 0.65 A

BS3-APWB

Face

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos

EM/HID Prox/MIFARE/DESFire/HID iCLASS: 30 mm, FeliCa: 15 mm

NFC, BLE

Supported4)

Supported

IP65

IK06

0.3 ~ 1.0 m

1.4 ~ 1.9 m

Within 0.2 seconds

Supported

100,0006)

Face: 50,000

Face: 100,000 / Card: 100,000 / PIN: 100,000

5,000,000

50,000

1.5GHz Quad Core

32GB Flash + 4GB RAM

Supported

5.5" IPS color LCD

720 x 1280 pixels

2MP x 2EA (Visual, IR)

16bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40 °C ~ 70 °C

0% ~ 80%, non-condensing

0 % ~ 90 %, non-condensing

Device: 380g
Bracket (Including washer and bolt): 90g

82.5 x 171 x 23.4 (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE, MIC, TELEC, ETL Listed to UL 294

Supported (802.11 b/g/n 2.4GHz)

Supported (10/100/1000 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input, 1 ch Output

3ch Inputs

1 Relay

USB 2.0 (Host)

Supported

Supported
(IEEE 802.3 at compliant)

Supported

Supported

Supported

Voltage: 12 Vdc, Current: Max. 1 A
Voltage: 24 Vdc, Current: Max. 0.65 A

1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with
BioStation 3.

2)RF read range will vary depending on the installation environment.

3)Supports QR/Barcodes composed of up to 32 ASCII code strings.

4)Requires a separate license.

5)The minimum facial authentication distance shown is the default setting for the product, and the recommended facial authentication distance is 0.6 to 1.0 m.

6)The number of users registered without having any credential data.


• If BioStation 3 is a master device and a device with a fingerprint sensor is connected as a slave, the slave device can be used for fingerprint recognition.
- Max. Fingerprint Credentials (1:N): 100,000
- Max. Fingerprint Credentials (1:1): 100,000
