BioStation 3 Max
AI-powered biometric terminal.
BioStation 3 Max is Suprema’s flagship AI-powered biometric terminal for identity-first security. Built for busy lobbies and mission-critical entrances, it combines a hardened, highly certified platform with fast, trusted multi-factor authentication and broad credential support in one enterprise-ready 7-inch touchscreen device.
Suprema AI engine.
Just you. Just in.
Heels on Monday, hoodie on Friday... BioStation 3 Max still knows it’s you. Suprema’s AI engine keeps every check-in smooth, even through wild styles, runway poses, and full-on “don’t-look-at-me” faces.
Walkthrough ready.
Suprema’s AI algorithm leverages dynamic face templates to improve matching performance for individuals of any ethnicity, even when they wear masks, glasses, hats, beards, niqabs, or various hairstyles, from up to 130 cm away.
World-leading matching speed.
Face matching around 0.3 s at the door and fingerprint matching up to 400,000 matches/sec let you handle heavy traffic without slowing lanes down.
Spoof-resistant
by design.
Infrared-based Live Face Detection and Live Finger Detection help block photos, screens, simple 3D masks, and fake fingerprints made from materials like rubber, paper, film, clay, or silicone.
Smart biometric templates.
Deep-learning–based extraction delivers accurate fingerprint templates even from low-quality, dry, or distorted fingers, while adaptive learning continuously refines face templates with each scan to improve matching accuracy over time.
Identity-first security
and enterprise compliance.
With an upgraded OS platform, high certification, strong encryption, and privacy-preserving features, BioStation 3 Max helps critical spaces meet strict security and data-protection requirements with a device built for long-term compliance and low operational risk.
Secure boot helps protect the device from unauthorized changes by allowing only authenticated firmware to run at startup.
BioStation 3 Max uses CC EAL6+ certified components to support projects exposed to advanced threats.
Secure Linux OS that reduces attack surface and aligns with global certifications.
Secure tamper that detects pry, or device removal to trigger instant alerts and data wipe.
Template on Mobile keeps biometric templates on the user’s phone for on-device matching.
MFA that combines face, finger, card, PIN... to match security levels for high-risk zones.
BioStation 3 Max is designed to support global certifications and enterprise compliance requirements.
Easy In. When it’s time.
Swipe, scan, smile. BioStation 3 Max handles every way people try to get in and still knows when to say "not now." If it’s not your time, the door won’t budge... but the intercom will.
Multi-credential support.
Face. AI-powered facial authentication built on Suprema’s latest AI engine, delivering fast (~0.3 s) matching for smooth walk-up and walk-through access in busy lobbies and lanes.
Finger. Adds precise biometric verification for higher-security doors, sensitive zones, and multi-factor access policies.
Mobile cards. Smartphone-based credentials using NFC or BLE, enabling touchless, convenient, and highly secure access without physical cards.
QR Code. Scannable codes on phones or paper for visitors, contractors, and temporary users, ideal for time-limited and one-off access.
RFID cards. Industry-standard RFID formats for employees, contractors, and visitors, supporting large cardholder populations up to 100,000 users.
iCLASS SE/SR/Seos, HID Prox. HID technologies for brownfield upgrades and mixed environments, making it easy to modernize sites without replacing every card.
Remote door unlock. Trigger the device’s built-in relay from the BioStar X platform to unlock doors instantly, no matter where you are.
VoIP intercom
Built-in VoIP intercom with mic, speaker, and SIP support lets users call reception or security directly from the device whenever access needs human assistance.
Lobbies & receptions. Create a premium first impression with fast facial authentication, large on-screen prompts, and built-in intercom for reception handoff, ideal for HQ entrances and VIP floors.
Speedgates & turnstiles. Keep lanes flowing with fast matching and multi-credential support, so commuters can walk through using face, mobile, or card without slowing down peak-hour traffic.
Enterprise T&A hubs. Create a self-check-in point where employees clock in with face or fingerprint, get instant visual confirmation, and rely on the built-in intercom for any exceptions.
High-security doors. Protect data rooms, labs, and control centers with strong multi-factor options such as face + fingerprint or face + card, backed by robust spoof detection and hardened device security.
Access at the blink of AI.
High-performance edge AI.
High-performance AI SoC with quad-core 1.4GHz CPU and NPU, optimized for real-time video processing and fast, energy-efficient facial authentication.
High-capacity storage.
Supports up to 100,000 users with ample template and log capacity, keeping large sites responsive even when network connectivity is limited.
Dynamic audio & mic.
Built-in speaker and microphone enable VoIP intercom, audio alerts, and voice guidance, turning every access point into a communication hub.
Dual-camera liveness.
Dual 2 MP visual and IR cameras enable robust liveness and spoof detection against printed photos, screens, and simple 3D attacks.
Patented IR optics.
Up to 25,000 lx operating illuminance keeps face authentication reliable in diverse lighting conditions, from dim interiors to bright daylight (excluding direct sun).
PoE+ Power.
PoE+ (802.3at) supplies power and data over a single cable, simplifying installation while supporting the 7” display, intercom, and onboard processing.
※ Only on BS3M-APB and BS3M-OAPB.
-
- User capacity 1:1
- Face: 100K Fingerprint: 100K Card: 100K PIN: 100K
- Operating temperature
- -20°C ~ 50°C
-
- Log capacity
- Text: 5,000,000, Image: 50,000
- Operating humidity
- 0% ~ 80%
-
- Face
- Supported, 10 templates per user
- Power
- 12 Vdc / 24 Vdc
-
- Fingerprint ※ BS3M-ODB / OAPB only
- Supported, 2 templates per user
- Ethernet
- 10/100/1000 Mbps, auto MDI/MDI-X
-
- RFID
- EM, MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa + iCLASS SE/SR/SRos, HID Prox
※ BS3M-APB / OAPB only
- PoE+ ※ BS3M-APB / OAPB only
- Supported (IEEE 802.3at compliant)
-
- Mobile
- NFC, BLE
- RS-485
- 1ch Host or Slave (selectable)
Ready to make an entrance.
BioStation 3 Max is built to be seen... and built tough. Its slim form factor, and 7-inch touchscreen make it a natural fit for premium lobbies where experience and brand image matter. Behind the polished look, IP65 and IK06 ratings protect it from dust, water, and everyday knocks, keeping it reliable in busy front-of-house environments.
Interactive 7" touch display
Built-in AI biometric sensors
Slim, versatile form factor
Rugged IK06 impact protection
IP65 all-weather, dust-proof design

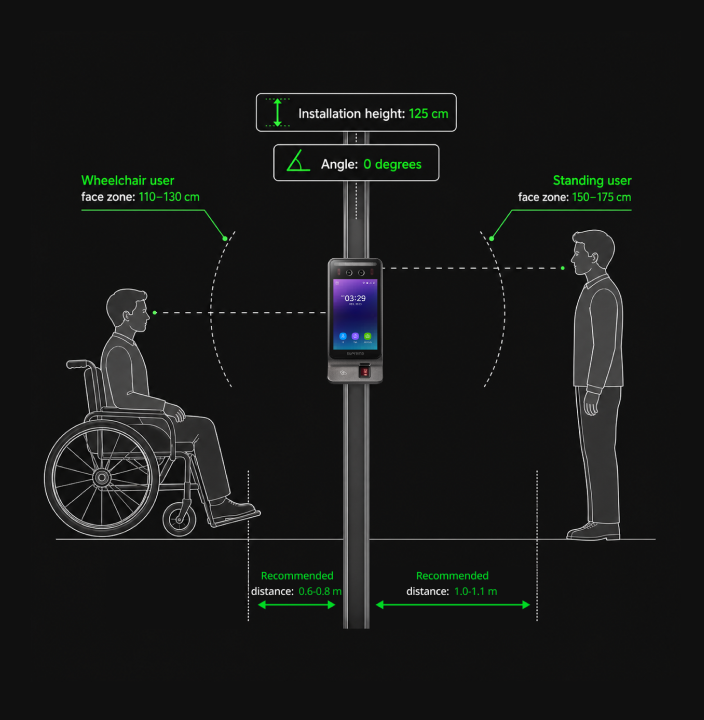

Designed for
inclusive entry.
BioStation 3 Max supports more natural authentication across different user heights, including wheelchair users, helping create a smoother and more accessible entrance experience.
Specification
Scroll left/right
Scroll left/right
Credential
Biometrics
RF Option
RF read range 2)
Mobile Card
QR/Barcode 3)
Scrambled Keypad (PIN)
Protections
IP rating
IK rating
Face
Authentication Distance 5)
Authentication Height
Matching speed
Live Face Detection
Fingerprint
Image dimension
Resolution
Template
Extractor / Matcher
Sensor Certificates
Live Fingerprint Detection
Capacity
Max. User
Max. Credential (1:N)
Max. Credential (1:1)
Max. Text Log
Max. Image Log
General
CPU
Memory
Crypto Chip
Display
Display Resolution
Camera
Sound
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Weight
Dimension (WxHxD, mm)
Certifications
Interface
Ethernet
Network Protocol
RS-485
RS-485 Communication Protocol
Wiegand
Input
Relay
USB
USB expansion port
PoE+7)
Intercom
RTSP
(Real Time Streaming Protocol)Tamper
Electrical
Power
Face, Fingerprint
125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos
EM/MIFARE/DESFire/HID iCLASS: 50 mm, HID Prox/FeliCa: 30 mm
NFC, BLE
Supported4)
Supported
IP65
IK06
0.3 ~ 1.3 m
1.4 ~ 1.9 m
Within 0.3 seconds
Supported
300 x 400 pixels
500 dpi
SUPREMA / ISO19794-2 / ANSI-378
MINEX certified and compliant
FBI PIV and FBI Mobile ID FAP20
Supported (SW-based)
100,0006)
Face: 50,000 Fingerprint: 100,000 Card: 100,000
Face: 100,000 Fingerprint: 100,000 Card: 100,000 PIN: 100,000
5,000,000
50,000
1.4 GHz Quad Core
32 GB Flash + 4 GB RAM
Supported
7" IPS color LCD
800 x 1280 pixels
IR: 2M pixels
Visual: 2M pixels
16 bit
-20 °C ~ 50 °C
-40 °C ~ 70 °C
0 % ~ 80 %, non-condensing
0 % ~ 90 %, non-condensing
Device: 640 g
Bracket: 206 g (including washers and bolts)
Device: 119.8 x 268.3 x 23.5 (Top) / 49.6 (Bottom) (mm)
Bracket: 98.4 x 251.4 (mm)
CE(CE models only), UKCA, KC, FCC, IC, RCM, RoHS, REACH, WEEE, SIG, MIC, TELEC, ETL Listed to UL 294
Supported (10/100/1000 Mbps, auto MDI/MDI-X)
TCP, UDP
1 ch Master / Slave (Selectable)
OSDP V2 compliant
1 ch Input, 1 ch Output
3 ch Inputs
1 relay
USB 2.0 (Type C)
Supported
Supported (IEEE 802.3at compliant)
Supported
Supported
Supported
12 Vdc Current: Max. 2.1 A
24 Vdc Current: Max. 1 A
Face, Fingerprint
125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa
EM/MIFARE/DESFire: 50 mm, FeliCa: 30 mm
NFC, BLE
Supported4)
Supported
IP65
IK06
0.3 ~ 1.3 m
1.4 ~ 1.9 m
Within 0.3 seconds
Supported
300 x 400 pixels
500 dpi
SUPREMA / ISO19794-2 / ANSI-378
MINEX certified and compliant
FBI PIV and FBI Mobile ID FAP20
Supported (SW-based)
100,0006)
Face: 50,000 Fingerprint: 100,000 Card: 100,000
Face: 100,000 Fingerprint: 100,000 Card: 100,000 PIN: 100,000
5,000,000
50,000
1.4 GHz Quad Core
32 GB Flash + 4 GB RAM
Supported
7" IPS color LCD
800 x 1280 pixels
IR: 2M pixels
Visual: 2M pixels
16 bit
-20 °C ~ 50 °C
-40 °C ~ 70 °C
0 % ~ 80 %, non-condensing
0 % ~ 90 %, non-condensing
Device: 640 g
Bracket: 206 g (including washers and bolts)
Device: 119.8 x 268.3 x 23.5 (Top) / 49.6 (Bottom) (mm)
Bracket: 98.4 x 251.4 (mm)
CE(CE models only), UKCA, KC, FCC, IC, RCM, RoHS, REACH, WEEE, SIG, MIC, TELEC, ETL Listed to UL 294
Supported (10/100/1000 Mbps, auto MDI/MDI-X)
TCP, UDP
1 ch Master / Slave (Selectable)
OSDP V2 compliant
1 ch Input, 1 ch Output
3 ch Inputs
1 relay
USB 2.0 (Type C)
Supported
Not supported
Supported
Supported
Supported
12 Vdc Current: Max. 2.1 A
24 Vdc Current: Max. 1 A
Face
125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos
EM/MIFARE/DESFire/HID iCLASS: 50 mm, HID Prox/FeliCa: 30 mm
NFC, BLE
Supported4)
Supported
IP65
IK06
0.3 ~ 1.3 m
1.4 ~ 1.9 m
Within 0.3 seconds
Supported
Not supported
Not supported
Not supported
Not supported
Not supported
Not supported
100,0006)
Face: 50,000 Card: 100,000
Face: 100,000 Card: 100,000 PIN: 100,000
5,000,000
50,000
1.4 GHz Quad Core
32 GB Flash + 4 GB RAM
Supported
7" IPS color LCD
800 x 1280 pixels
IR: 2M pixels
Visual: 2M pixels
16 bit
-20 °C ~ 50 °C
-40 °C ~ 70 °C
0 % ~ 80 %, non-condensing
0 % ~ 90 %, non-condensing
Device: 565 g
Bracket: 187 g (including washers and bolts)
Device: 119.8 x 233 x 23.5 (mm)
Bracket: 98.4 x 223.3 (mm)
CE(CE models only), UKCA, KC, FCC, IC, RCM, RoHS, REACH, WEEE, SIG, MIC, TELEC, ETL Listed to UL 294
Supported (10/100/1000 Mbps, auto MDI/MDI-X)
TCP, UDP
1 ch Master / Slave (Selectable)
OSDP V2 compliant
1 ch Input, 1 ch Output
3 ch Inputs
1 relay
USB 2.0 (Type C)
Supported
Supported (IEEE 802.3at compliant)
Supported
Supported
Supported
12 Vdc Current: Max. 2.1 A
24 Vdc Current: Max. 1 A
Face
125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa
EM/MIFARE/DESFire: 50 mm, FeliCa: 30 mm
NFC, BLE
Supported4)
Supported
IP65
IK06
0.3 ~ 1.3 m
1.4 ~ 1.9 m
Within 0.3 seconds
Supported
Not supported
Not supported
Not supported
Not supported
Not supported
Not supported
100,0006)
Face: 50,000 Card: 100,000
Face: 100,000 Card: 100,000 PIN: 100,000
5,000,000
50,000
1.4 GHz Quad Core
32 GB Flash + 4 GB RAM
Supported
7" IPS color LCD
800 x 1280 pixels
IR: 2M pixels
Visual: 2M pixels
16 bit
-20 °C ~ 50 °C
-40 °C ~ 70 °C
0 % ~ 80 %, non-condensing
0 % ~ 90 %, non-condensing
Device: 565 g
Bracket: 187 g (including washers and bolts)
Device: 119.8 x 233 x 23.5 (mm)
Bracket: 98.4 x 223.3 (mm)
CE(CE models only), UKCA, KC, FCC, IC, RCM, RoHS, REACH, WEEE, SIG, MIC, TELEC, ETL Listed to UL 294
Supported (10/100/1000 Mbps, auto MDI/MDI-X)
TCP, UDP
1 ch Master / Slave (Selectable)
OSDP V2 compliant
1 ch Input, 1 ch Output
3 ch Inputs
1 relay
USB 2.0 (Type C)
Supported
Not supported
Supported
Supported
Supported
12 Vdc Current: Max. 2.1 A
24 Vdc Current: Max. 1 A
1)DESFire EV2/EV3 cards are backward compatible with DESFire EV1 cards, supporting CSN and smart card features, including those of the DESFire EV1 card.
2)RF read range will vary depending on installation environment.
3)Supports QR codes with up to 32 ASCII characters.
4)Camera QR license is required to use more diverse QR/barcode authentication. For detailed information on device licenses, please refer to the BioStar X Administrator Guide.
5)The minimum facial authentication distance indicated is the default setting for the product, and the recommended facial authentication distance is 0.5-1.3 m.
6)The number of users registered without having any credential data.
7)Requires PoE+ (IEEE 802.3at, 30 W) or PoE++ (IEEE 802.3bt, 60–100 W) power. Standard PoE (IEEE 802.3af, 15.4 W) is not supported. Using standard PoE may cause devices to operate unstably or be permanently damaged. Before connecting the device, make sure your network switch or PoE injector supports PoE+ or PoE++.
