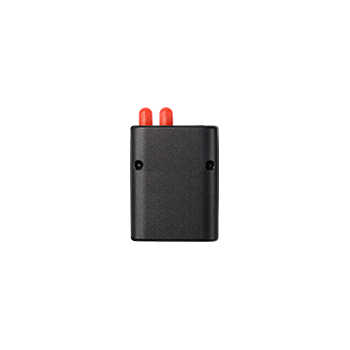

Cellular Modem
-

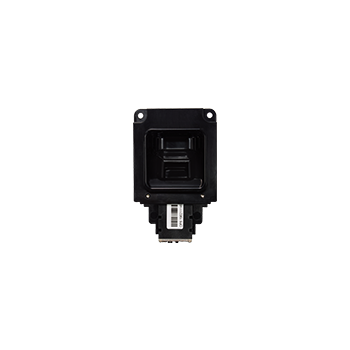

Fingerprint Sensor
-

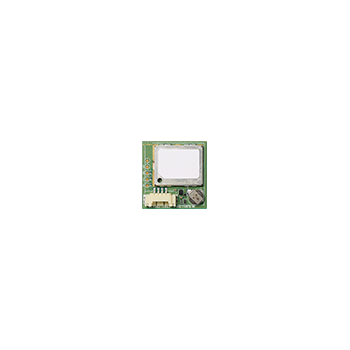

GPS Module
-

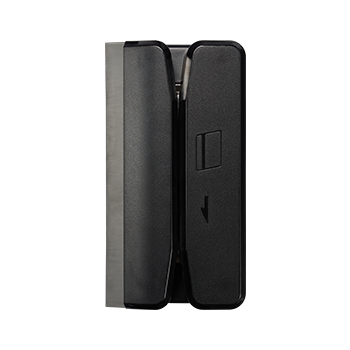

Magstripe Reader
-

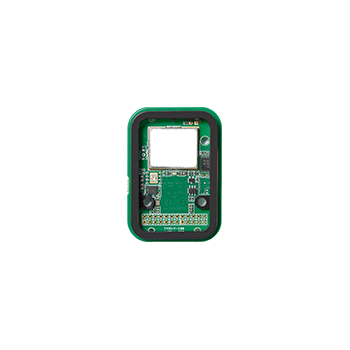

RFID Module
-

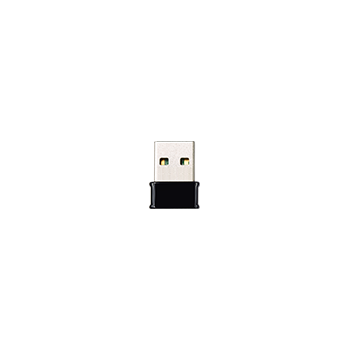

Wi-Fi Dongle
Suprema NOVUS is a versatile, powerful, and fully modular enterprise-class product, designed for use in any Time and Attendance or Workforce Management application. Using Android OS, NOVUS provides a well-defined and supported environment that allows partners and integrators to deploy new or existing Android applications – complementing, supporting, and extending their current mobile platform functionality.
Features
Customize your workstation
- Designed with a fully modular structure, NOVUS can provide the rapid configurability needed to meet all demands and requirements. You can order a customized workstation or assemble the module by yourself easily.
Complimentary
with the Credentials- Its versatility to support fingerprint recognition, RFID cards, magnetic stripe card, PIN and mobile offers you flexible options to identify your employees.
Designed to increase workforce management efficiency
- NOVUS is designed to accommodate any and all time and attendance, and workforce management systems. With Android OS, it provides a defined and supported environment that allows partners and integrators to deploy new or existing Android applications. The NOVUS system can complement, support, and expand the user's current mobile platform functionality.
Specification
Hardware ● : Default○ : Optional
| Keypad | ○ | NVS07-D1 |
|---|---|---|
| ● | NVS07-D1K model includes 25 keys tactile | |
| 7” touchscreen | ● | XGA, 1024x600 |
| CPU | ● | 1.0 GHz Quad-core |
| Camera | ● | 1 megapixels |
Reader
| Fingerprint reader | ○ | Optical sensor, Embedded Suprema algorithm |
|---|---|---|
| RFID reader | ○ | R1 : 125kHz EM, & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, HID iCLASS SE/SR/Seos (UID Only), Legic Advant (UID Only) |
| ○ | R2 : 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, HID iCLASS SE/SR/Seos, Legic Advant (UID Only) | |
| ○ | R3 : 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, Legic Advant/Prime (Planned) | |
| Magnetic strip card reader | ○ | 3 tracks |
| Mobile card reader | ○ | NFC |
Interface
| Ethernet | ● | 10/100 Mbps, auto MDI/MDI-X |
|---|---|---|
| Wiegand | ● | 1ch input |
| RS-232 | ● | RXD, TXD, CTS, RTS |
| Wi-Fi | ○ | 802.11 b/g/n/ac |
| GPS | ○ | |
| GSM | ○ | Sierra GL7500 |
| USB | ● | USB 2.0 (Host) |
| SD card | ● |
I/O
| Relay | ● | 2ch |
|---|
Power supply
| PoE+ | ● | 802.3at compliant |
|---|---|---|
| Adaptor | ● | 12 VDC |
| Uninterrupted power supply (Battery) | ○ | 3400mAh |
Accessory
Download
