BioEntry W2

BioEntry W2

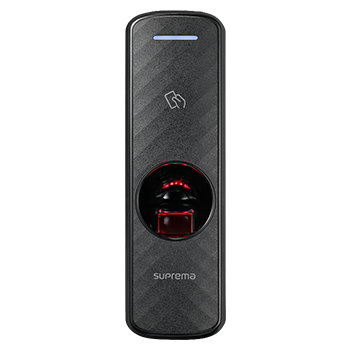

Suprema BioEntry W2 is a rugged fingerprint access control device featuring Suprema’s next generation biometric technology and security platform. BioEntry W2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design featuring multi-card support with dual-frequency RFID technology. Packed in a rugged IP67/IK09 housing with sleek metal finish, BioEntry W2 is a perfect access control solution for tough environment and outdoor installation.

Features

World’s Fastest Outdoor Fingerprint Device
BioEntry W2 features a class-leading 1.2GHz Quad-core CPU that enhances user experience by offering World’s best matching speed, precise control of locking devices, and quick response for users.
IK09 Vandal-proof Structure
The BioEntry W2 comes with a robust, vandal-resistant housing. Combining reinforced resin with Suprema’s sophisticated engineering, the BioEntry W2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IP67 ingress protection, BioEntry W2 is a perfect solution for outdoor applications.
IP67, Dust & Water Proof
BioEntry W2 offers superior ingress protection with its IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, BioEntry W2 is the ideal choice for outdoor applications.
Dual Frequency, Multi-Smartcard Reader
Featuring dual-frequency RFID technology, BioEntry W2 supports both LF(125Khz) and HF(13.56MHz) RFID including all RFID standards that HID multiCLASS readers support. On top of fingerprint credential, BioEntry W2 supports most types of RFID card standards with a single device including MIFARE, HID iCLASS, DESFire, FeliCa, HID Prox, EM and NFC.
Live Finger Detection Technology
BioEntry W2 features new Live Finger Detection technology from Suprema. The previous live detection technology analyzes the dynamically changing pattern, liveness feature and unnaturalness feature of live and new fingers. Along with improvements to the existing algorithm, the new detection technology implements liveness decision engine using dual light source imaging. Using infra-red and white light, the engine blocks fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and so on.
Power over Ethernet
BioEntry W2 supports a seamless power sourcing over Ethernet cable(CAT5/6) without any degrading network performance and reach. Suprema’s PoE featured devices compliance to IEEE802.3af standard, to provide users with lower installation cost, simpler cabling and lower maintenance cost.
Versatile Interfaces
BioEntry W2 comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.

Configuration

bioentry w2 configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • RF Option

  • Mobile Card

Protections

  • Ingress Protection

  • Vandal Proof

Fingerprint

  • Template

  • Extractor / Matcher

  • Live Fingerprint Detection

Capacity

  • Max. User

  • Max. Credential (1:N)

  • Max. Credential (1:1)

  • Max. Text Log

  • Max. Image Log

General

  • CPU

  • Memory

  • Crypto Chip

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Tamper

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

Electrical

  • Power

BEW2-ODPB

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV31), FeliCa

NFC, BLE

IP67

IK09

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported

500,000

Fingerprint: 100,000

Fingerprint: 500,000 Card: 500,000

1,000,000

Not supported

1.2 GHz Quad Core

2GB Flash + 256 MB RAM

Supported

Not supported

Multiple colors

Multi-tone Buzzer

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 251g, Bracket: 43g (Including washer and bolt)

50 x 172 x 43.5 (Bottom) / 38.2 (Top)

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch Input or Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

IEEE 802.3af compliant

Not supported

DC 12V

BEW2-OAPB

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos

NFC, BLE

IP67

IK09

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported

500,000

Fingerprint: 100,000

Fingerprint: 500,000 Card: 500,000

1,000,000

Not supported

1.2 GHz Quad Core

2GB Flash + 256 MB RAM

Supported

Not supported

Multiple colors

Multi-tone Buzzer

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 251g, Bracket: 43g (Including washer and bolt)

50 x 172 x 43.5 (Bottom) / 38.2 (Top)

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch Input or Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

IEEE 802.3af compliant

Not supported

DC 12V

BEW2-OHPB

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV31), FeliCa

NFC, BLE

IP67

IK09

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported

500,000

Fingerprint: 100,000

Fingerprint: 500,000 Card: 500,000

1,000,000

Not supported

1.2 GHz Quad Core

2GB Flash + 256 MB RAM

Supported

Not supported

Multiple colors

Multi-tone Buzzer

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 251g, Bracket: 43g (Including washer and bolt)

50 x 172 x 43.5 (Bottom) / 38.2 (Top)

Supported

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch Input or Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

IEEE 802.3af compliant

Not supported

DC 12V

1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioEntry W2.

* BEW2-ODP, BEW2-OAP, BEW2-OHP do not support BLE.

Accessory

  • Power Adapter

Peripheral Device

Download

  • Brochures
    BioEntry W2 Brochure EN
    Feb 17, 2023
    2.02 MB
  • Firmware
    BioEntry W2 Firmware V1.7.1 EN
    Jan 30, 2023
    24.21 MB
  • Manual
    BioEntry W2 IG V1.29 UL EN
    Jan 26, 2023
    1.64 MB
  • Manual
    BioEntry W2 IG V1.32 EN
    Jan 26, 2023
    2.68 MB
  • Product Images
    BioEntry W2 Image (Low Res)
    Nov 30, 2018
    32.73 MB
  • Product Images
    BioEntry W2 Image (High Res)
    Nov 30, 2018
    70.70 MB
  • Manual
    BioEntry W2 Drilling Template EN
    Nov 19, 2018
    414.46 KB
