CoreStation

INTELLIGENT BIOMETRIC CONTROLLER

Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control system. Designed to accommodate enterprise-level systems, the CoreStation can store up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With its high-performance, biometric readiness, Ethernet communication, CoreStation is also capable of offering the full features of the BioStar 2 platform.

Features

Centralized Biometric Access Control

Centralized storage for user and access control data including fingerprint credentials

Complete controller functionalities with fingerprint matching

Multi-port interface for fingerprint /RF readers

Supports locks, sensors, RTE, and alarms

Enterprise-level Performance

Enterprise-level Performance

Improved Security

  • Centralized, secure storage of biometric and group access data

  • No Ethernet connection to the edge devices

  • No data stored on the edge devices

  • Secure communication via TLS 1.2

  • AES-256 encryption

System Flexibility and Scalability

  • Compatible with OSDP 2.0

  • Elevator control with OM-120

  • Supports up to 132 access points with DM-20 and Secure I/O 2
    (132 x Wiegand readers/64 x RS-485 readers)

  • 3rd party Wiegand reader

  • 4ch onboard reader control
    (Wiegand, RS-485, relays, inputs, outputs, power out, AUX)

  • Leverages existing wiring

Simultaneous matching speed up to 8 devices in 1 second

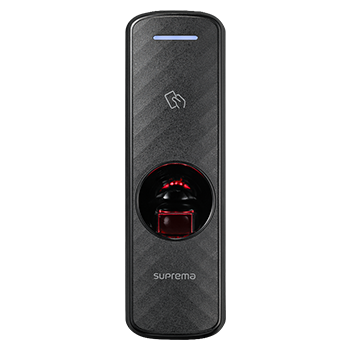

fingerprint reader suprema corestation

Configuration

corestation configuration

Specification

Scroll left/right

Scroll left/right

Model Name

Capacity

  • Max. User

  • Max. Credential (1:N)

  • Max. Credential (1:1)

  • Max. Text Log

  • Max. Image Log

General

  • CPU

  • Memory

  • Crypto Chip

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Certifications

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • RS-485 Communication Protocol

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

  • Supervised Input

  • TTL Output

  • AUX Input

  • Tamper

Electrical

  • Power

Connectivity

  • Max. Slave Devices (RS-485)

  • Max. Wiegand Devices

CS-40

500,0001)

Fingerprint: 100,0002)
Face: 4,0003)

Fingerprint: 500,0002) / Face: 30,0003)
Card: 500,000 / PIN: 500,000

5,000,000

Not supported

1.4 GHz Octa Core

8GB Flash + 1GB RAM

Supported

Not supported

Multi-color

Not supported

0°C ~ 50°C (32°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 95%, non-condensing

415 g

150 x 214 x 21

CE, UKCA, KC, FCC, RCM, RoHS, REACH, WEEE, ETL Listed to UL 294

Not supported

Support (10/100 Mbps, Auto MDI/MDI-X)

5 ch

OSDP V2 Compliant

4 ch

8 ch (TTL Input or Supervised Input selectable)

4 relays

Not supported

Not supported

Not supported

Not supported

8 ch (TTL Input or Supervised Input selectable)

8 ch

2 ch(AC POWER FAIL, TAMPER)

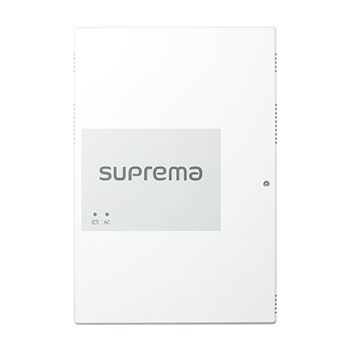

Optional (ENCR-10)

Voltage: 12 Vdc, Current: Max. 3 A

Max. 64 devices (Max. 31 devices per port)

Max. 132 devices (with DM-20)

- Product specifications are subject to change without notice to improve.

1)The number of users registered without any credential data.

2)If a device with a fingerprint sensor is connected as a slave, the slave device can be used for fingerprint authentication.

3)FaceStation 2 and FaceLite are available only.
