BioStation 2 incorporates the latest Suprema technology in a beautiful exterior. It combines a new powerful processor, Suprema’s next generation optical sensor and improved fingerprint sensing & capturing algorithm to offer unrivaled performance. BioStation 2 provides users with instant authentication and rapid data transfer to manage high volume data with ease. It is ideal for applications that require versatility without compromise in style and performance.
Features
- Instant Matching & Authentication
- BioStation 2 is designed to provide matching & authentication in an instant. Leveraging the powerful hardware and sophisticated algorithms, the device can match and authenticate up to 20,000 fingerprints per second.
- Massive Memory Capacity
- BioStation 2 offers a massive memory capacity to handle large number of users. The device can manage up to 1,000,000 fingerprint templates, which translates to 500,000 maximum users that is equivalent to the population of a large metro area such as Miami. Additionally, BioStation 2 can hold up to 3,000,000 logs for backup in case of a connection loss to server in order to safely guard all records.
- Rapid Data Transfer
- BioStation 2 features Rapid Data Transfer that drastically improves the transfer speed of user and log data. The device can send user data that includes large biometric data at a rate of 5,000 users per min.
- Next Generation Optical Sensor
- The new sensor in BioStation 2 enables the device to capture and process much clearer fingeprint images under less-than-ideal conditions. The new sensor offers excellent wet and dry fingeprint capture performance that allows the device to be used even in harsh environments.
- IP65 Weather Proof
- BioStation 2 features an IP65 certified weather proof exterior. IP65 protection allows system designers to place the terminal in both indoor and outdoor environments.
- Versatile Interface
- BioStation 2 features standard TCP/IP and RS485 interfaces for main communication between devices and the server. It also supports USB and Wiegand interfaces to provide maximum versatility. BioStation 2 features built-in WiFi and Power-over-Ethernet for flexible installation options.

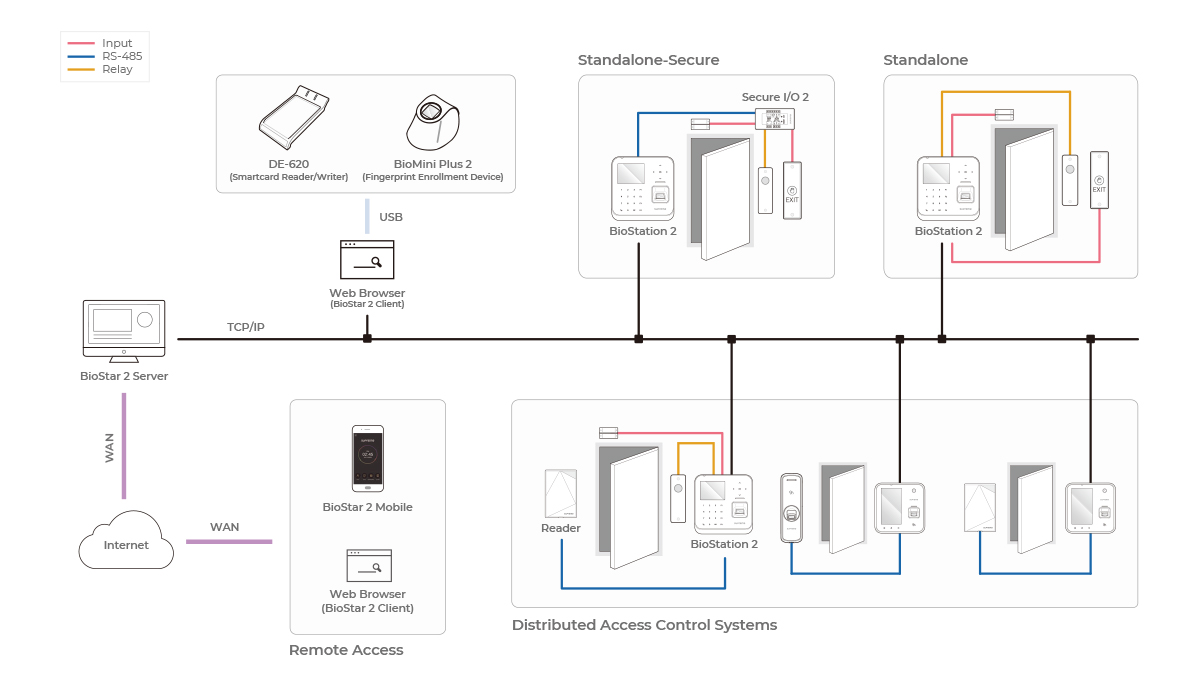

Configuration
Specification
Scroll left/right
Scroll left/right
Model Name
Credential
RF Option
RF read range 2)
Mobile Card
Protections
IP rating
IK rating
Fingerprint
Template
Extractor / Matcher
Live Fingerprint Detection
Capacity
Max. User
Max. Credential (1:N)
Max. Credential (1:1)
Max. Text Log
Max. Image Log
General
CPU
Memory
Crypto Chip
Display
LED
Sound
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Weight
Dimension (WxHxD, mm)
Certifications
Interface
Wi-Fi
Ethernet
RS-485
RS-485 Communication Protocol
Wiegand
TTL Input
Relay
USB
SD Card
PoE
Intercom
Tamper
Electrical
Power
BS2-OMPW
13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa
EM/HID Prox/MIFARE/DESFire: 50 mm, FeliCa: 30 mm
NFC
IP65
Not supported
SUPREMA / ISO 19794-2 / ANSI 378
MINEX certified and compliant
Not supported
500,0003)
Fingerprint: 20,000
Fingerprint: 500,000 Card: 500,000
PIN: 500,000
3,000,000
Not supported
1.0 GHz Single Core
8GB Flash + 256MB RAM
Supported
2.8” color TFT LCD
Multi-color
16-bit
-20°C ~ 50°C (-4°F ~ 122°F)
-40°C ~ 70°C (-40°F ~ 158°F)
0% ~ 80%, non-condensing
0% ~ 90%, non-condensing
Device: 440g, Bracket: 130g (Including washer and screw)
142 x 144 x 45 (Bottom) / 38 (Top) (mm)
CE, UKCA, KC, FCC, BIS, RoHS, REACH, WEEE
Built-in, IEEE 802.11 b/g
Supported (10/100 Mbps, auto MDI/MDI-X)
1ch Host or Slave (Selectable)
OSDP V2 Compliant
1ch Input, 1ch Output
2ch Inputs, 2ch Outputs
1 Relay
USB 2.0 (Host)
Not supported
Supported (IEEE 802.3af compliant)
Supported
Supported
Voltage: 12 Vdc
Current: Max. 0.8 A
BS2-OHPW
125kHz HID Prox
EM/HID Prox/MIFARE/DESFire: 50 mm, FeliCa: 30 mm
Not supported
IP65
Not supported
SUPREMA / ISO 19794-2 / ANSI 378
MINEX certified and compliant
Not supported
500,0003)
Fingerprint: 20,000
Fingerprint: 500,000 Card: 500,000
PIN: 500,000
3,000,000
Not supported
1.0 GHz Single Core
8GB Flash + 256MB RAM
Supported
2.8” color TFT LCD
Multi-color
16-bit
-20°C ~ 50°C (-4°F ~ 122°F)
-40°C ~ 70°C (-40°F ~ 158°F)
0% ~ 80%, non-condensing
0% ~ 90%, non-condensing
Device: 440g, Bracket: 130g (Including washer and screw)
142 x 144 x 45 (Bottom) / 38 (Top) (mm)
CE, UKCA, KC, FCC, BIS, RoHS, REACH, WEEE
Built-in, IEEE 802.11 b/g
Supported (10/100 Mbps, auto MDI/MDI-X)
1ch Host or Slave (Selectable)
OSDP V2 Compliant
1ch Input, 1ch Output
2ch Inputs, 2ch Outputs
1 Relay
USB 2.0 (Host)
Not supported
Supported (IEEE 802.3af compliant)
Supported
Supported
Voltage: 12 Vdc
Current: Max. 0.8 A
BS2-OEPW
125kHz EM
EM/HID Prox/MIFARE/DESFire: 50 mm, FeliCa: 30 mm
Not supported
IP65
Not supported
SUPREMA / ISO 19794-2 / ANSI 378
MINEX certified and compliant
Not supported
500,0003)
Fingerprint: 20,000
Fingerprint: 500,000 Card: 500,000
PIN: 500,000
3,000,000
Not supported
1.0 GHz Single Core
8GB Flash + 256MB RAM
Supported
2.8” color TFT LCD
Multi-color
16-bit
-20°C ~ 50°C (-4°F ~ 122°F)
-40°C ~ 70°C (-40°F ~ 158°F)
0% ~ 80%, non-condensing
0% ~ 90%, non-condensing
Device: 440g, Bracket: 130g (Including washer and screw)
142 x 144 x 45 (Bottom) / 38 (Top) (mm)
CE, UKCA, KC, FCC, BIS, RoHS, REACH, WEEE
Built-in, IEEE 802.11 b/g
Supported (10/100 Mbps, auto MDI/MDI-X)
1ch Host or Slave (Selectable)
OSDP V2 Compliant
1ch Input, 1ch Output
2ch Inputs, 2ch Outputs
1 Relay
USB 2.0 (Host)
Not supported
Supported (IEEE 802.3af compliant)
Supported
Supported
Voltage: 12 Vdc
Current: Max. 0.8 A
1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioStation 2.
2)RF read range will vary depending on installation environment.
3)The number of users registered without any credential data.
Accessory
Peripheral Device
Download
Related Product

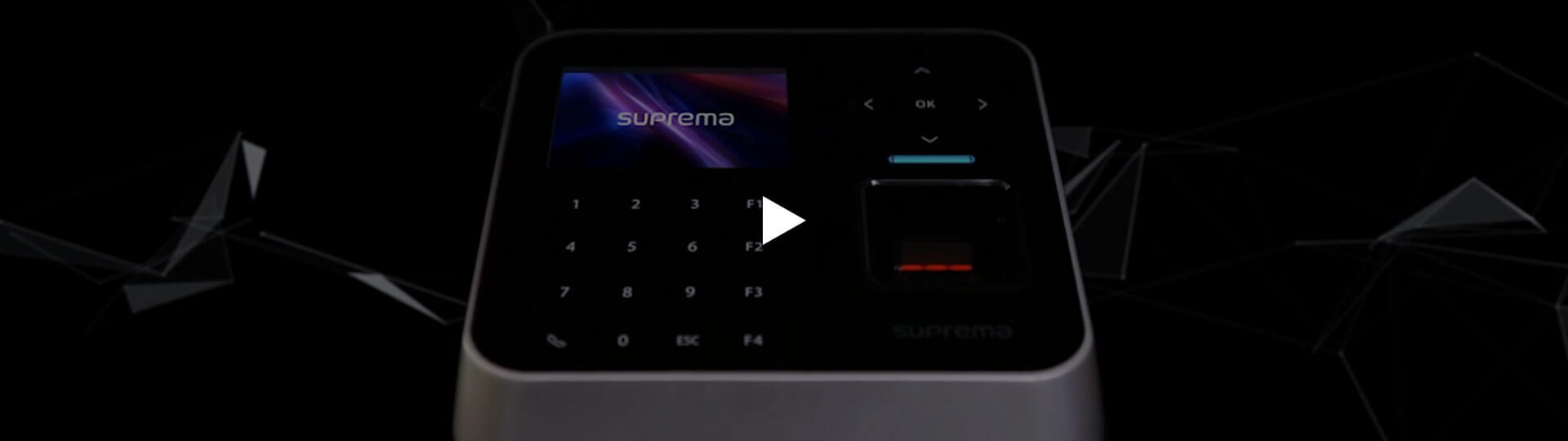

Video
