XPass

Smart IP RFID Device

XPass
Smart IP RFID Device
XPass effortlessly combines key features of a traditional access control system in a compact form factor and is a cornerstone in Suprema’s distributed IP access control system. XPass can be used in both indoor and outdoor environments and the Power-over-Ethernet connection allows for quick and easy installation.

Features

Powerful CPU
XPass is powered by a 32-bit microprocessor which allows seamless operation and uninterrupted psub-device control. The Powerful CPU of XPass gives the ability to deliver a fast matching speed and rapid responses while handling large amounts of data.
IP Access Control with PoE
Featuring an IP-based system topology and PoE, XPass’ IP access control system offers extra flexibility in designing your security system while reducing cost on installation and maintenance. Compared to conventional access control systems, IP access control provides lower cost per door with less wiring and utilization of the existing network infrastructure.
IP65 Rated Waterproof Structure
XPass has been comprehensively sealed against invasive moisture, dust and liquid. Featuring IP65 rated protection, its meticulous sealing and extra protective engineering ensure that XPass will operate with unmatched reliability in all types of installations.
Ultra Flexibility
XPass allows a flexible system design and offers cost advantages with its comprehensive communication interfaces such as TCP/IP, RS485, Wiegand and its relay. In addition, it provides multiple TTL inputs/outputs to offer extra flexibility. For further expansion, optional an external relay unit is also available.

Configuration

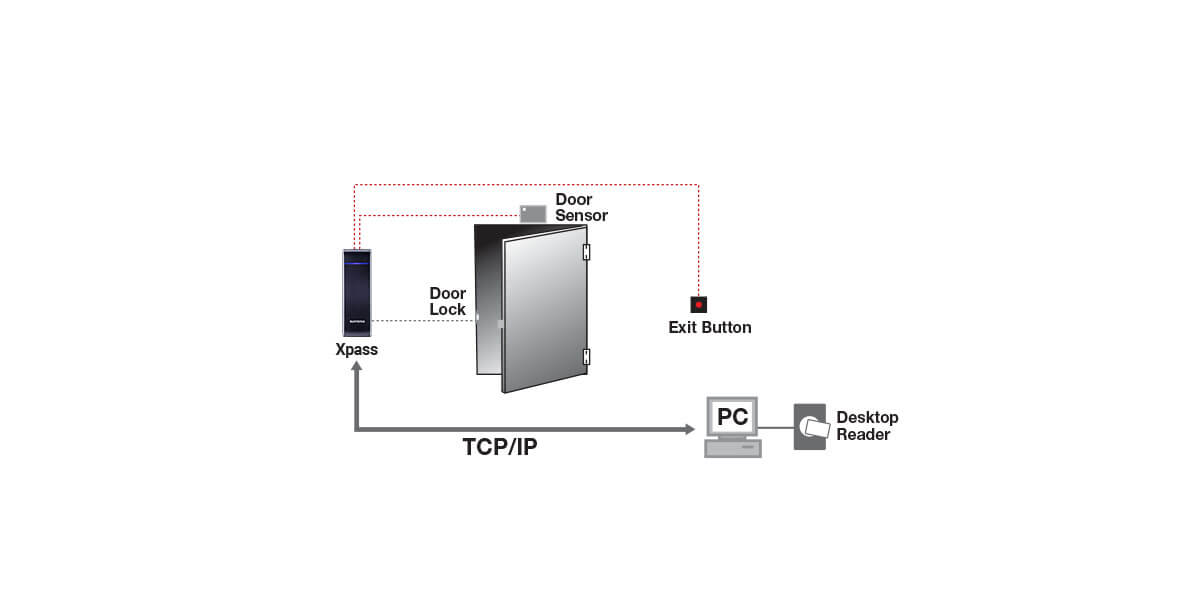

Xpass2 standalone

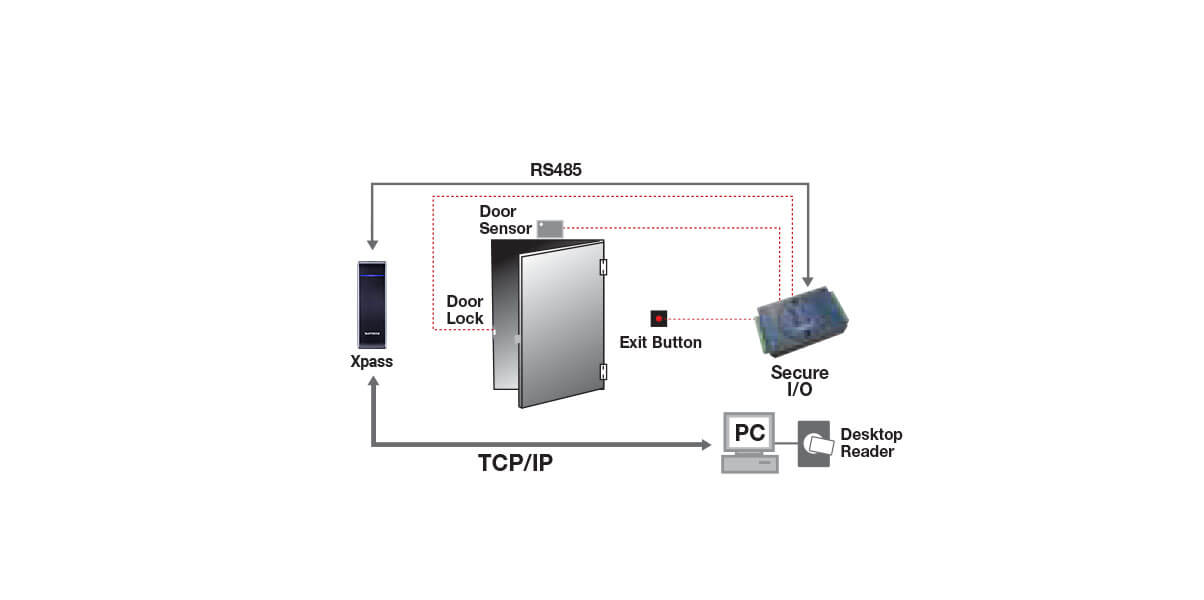

Xpass2 standalone-secure

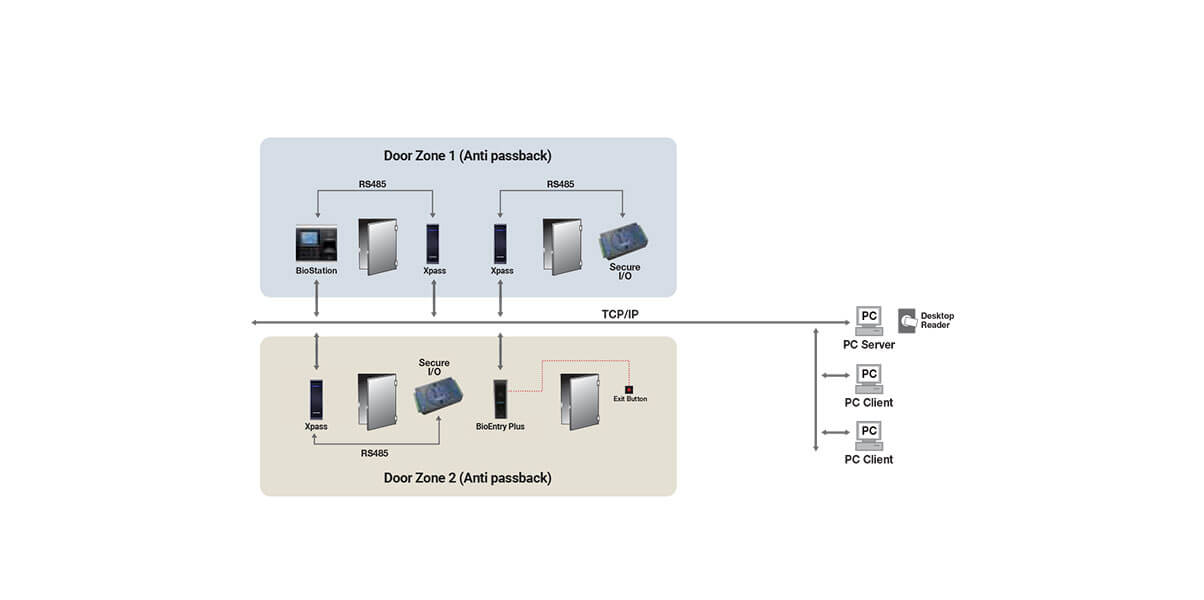

Xpass2 access control systems

Specification

Scroll left/right

Scroll left/right

Model Name

Credential

  • RF Option

  • Mobile Card

Protections

  • IP rating

  • IK rating

Capacity (RFID)

  • Users (1:1)

  • Users (1:N)

  • Templates (1:1)

  • Templates (1:N)

  • Text Log

  • Image Log

General

  • CPU

  • Memory

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

  • Tamper

Electrical

  • Power

XPM-PoE

13.56 MHz MIFARE, DESFire/EV1 (CSN)

Not supported

IP65

Not supported

40,000

40,000

Not supported

Not supported

50,000

Not supported

533MHz DSP

16MB RAM + 8MB Flash

Not supported

Multiple colors

Multi-tone Buzzer

-20° ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 142g, Bracket: 27g (including washers and bolts)

45 x 130 x 27

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch In or 1ch Out (Selectable)

2 Inputs

1 Relay

Not supported

Not supported

Optional

Not supported

Supported

12VDC

XPE-PoE

125 kHz EM

Not supported

IP65

Not supported

40,000

40,000

Not supported

Not supported

50,000

Not supported

533MHz DSP

16MB RAM + 8MB Flash

Not supported

Multiple colors

Multi-tone Buzzer

-20° ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 142g, Bracket: 27g (including washers and bolts)

45 x 130 x 27

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch In or 1ch Out (Selectable)

2 Inputs

1 Relay

Not supported

Not supported

Optional

Not supported

Supported

12VDC

XPH-PoE

125 kHz HID Prox

Not supported

IP65

Not supported

40,000

40,000

Not supported

Not supported

50,000

Not supported

533MHz DSP

16MB RAM + 8MB Flash

Not supported

Multiple colors

Multi-tone Buzzer

-20° ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 142g, Bracket: 27g (including washers and bolts)

45 x 130 x 27

Not supported

10/100 Mbps, auto MDI/MDI-X

1ch Host or Slave (Selectable)

1ch In or 1ch Out (Selectable)

2 Inputs

1 Relay

Not supported

Not supported

Optional

Not supported

Supported

12VDC
