Q-Face Pro: Facial Authentication Module

The Q-Face OEM module series is a standalone facial authentication solution optimized for on-device AI embedded systems requiring contactless biometric authentication. With high reliability and a flexible form factor, it enables seamless integration, delivering top-tier performance for manufacturers and system integrators.

The Q-Face Pro OEM module is the flagship model of the series, featuring high-performance AI-driven facial authentication and QR code scanning. Its industry-proven AI algorithms and security technologies safeguard user data while ensuring exceptional hardware stability. Additionally, comprehensive development documentation, SDKs, and online technical support facilitate fast and easy integration.

Features

Fast and Smart AI Optimized for Facial Authentication Access
NPU-optimized AI algorithm offers the highest standards in facial authentication accuracy and speed

Compatible with Facial Variations
Use dynamic face templates to increase matching performance with faces wearing masks, glasses, hats, beards, different hairstyles, etc.

Protected Against Facial Spoofing
Detect fake faces, images, and photos to safeguard against facial spoofing

Developer-Friendly Integration Tools for Easier Integration
Android, Windows, and Linux SDKs
Running On-line technical support channel

Non-stop Pass Through
Accurately and rapidly recognize moving faces in the high traffic areas

Reinforced user privacy and biometric data protection
Embedded with U.S NIST FIPS197 validated AES256 and ED25519 key exchange algorithm
Embedded with Secure Element(SE) that stores encryption key to prevent cyber-attacksnd biometric data protection

QR Detection for the extendibility of applications

Enhancing Security with Cutting-Edge Facial Authentication

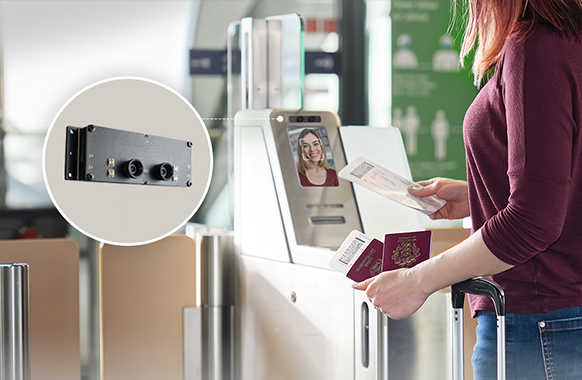

Revolutionize Border Security with Q-Face Pro

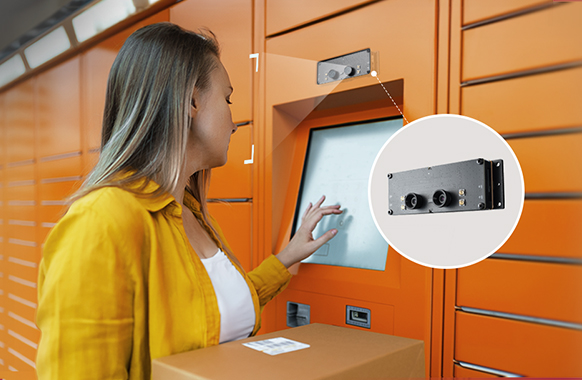

Pioneering Secure Facial Authentication for Smart Lockers

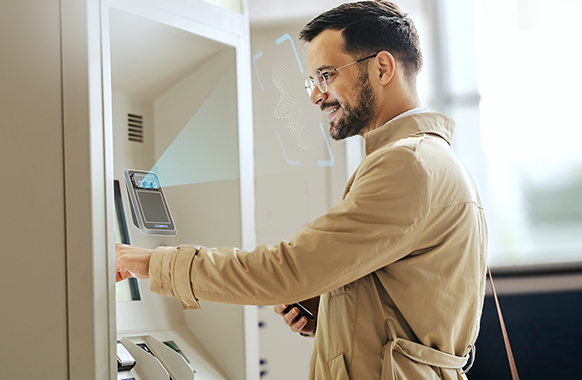

Revolutionizing ATM Security with Q-Face Pro

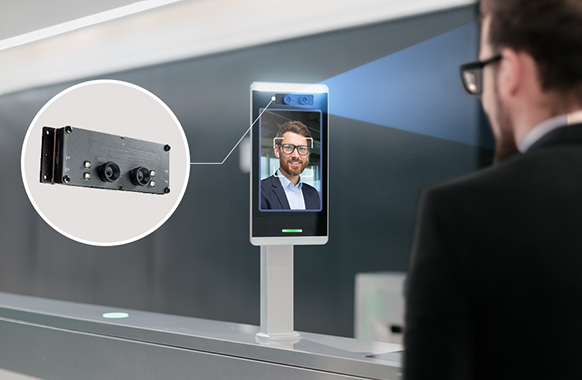

Modernize Turnstile Access Control with Q-Face Pro

Specification

Biometric Performance
General	CPU	Quad-core ARM Cortex-A7 32bit 1.5Ghz NPU (up to 2TOPS)
	Communication Interface	USB 2.0
	Power Consumption	< 5W (max)
	Power Supply	DC 5V 1A
	Operating Temperature	-10°C ~ 50°C
	Operating Humidity	0 ~ 90% RH
	Dimension	92mm x 30mm x 17mm (W x H x D)
	Heat Sink Control	By designed steal panel and power management logic in S/W
	Communication protocol	UVC & RNDIS protocol (video streaming and control module) / UART (commands only)
	Luminance	0.01 lux to 65,000 lux
OS	Device (Module)	Linux
OS	Host	Supports Windows 10 or later / Android 8.0 or later / Linux kernel v4.X or later
Sensor	Camera System	Dual camera system (RGB + IR) 1/2.8 CMOS 4EA IR LED (850nm)
	Angle of view	Vertical viewing angle of 65°
	Image Resolution (W*H)	720*1280
	Anti-spoofing	Yes
	Capacity	1:N : 50,000 users (max) / 1:1 100,000 users (max)
	Accuracy	FRR 1% @ FAR 0.00001% (1/10,000,000)
	Authentication Distance	0.5m ~ 1.3m
	Authentication Time	Total : < 500 ms Face Detection : < 50ms Authentication (Extraction + Matching) : < 450ms (less than 300ms @1:10,000 users)
Data Security	Secure Element	Storing encryption key
Data Security	Template and Channel Encryption	AES256 (FIPS197 validated algorithm), ED25519 (key exchange algorithm)
QR code Detection		Yes
Certifications		CE, FCC, RoHS, REACH, WEEE
