SFM6000 Series
Features Specification Accessories Applications Download
Contact Us 공유하기
SFM6000 Series represents a great leap forward in biometrics. It boasts a powerful 1.0GHz CPU that provides the world's fastest authentication and supports multiple interfaces including RS232 and USB2.0 that allow high-speed data transfer. With enlarged template capacity up to 25,000 templates, SFM6000 Series is the perfect solution for a large-scaled yet fast authentication.

Features

  • Powerful 1.0GHz CPU
  • 1:1 verification in 330ms
  • Fast Power-on Time
  • 8 configurable Digital I/O Ports
  • 1:1,000 Identification in 400ms
  • Suprema, ISO 19794-2, ANSI 378 Template Options
  • WSQ Image Compression Algorithm certified by FBI
  • 256-bit AES Fingerprint Data Encryption
  • 8MB and 16MB Flash Memory Option
  • RS232, USB2.0 Host Communication

Available Models

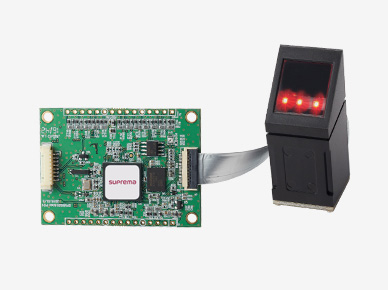

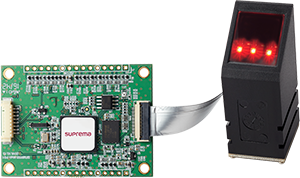

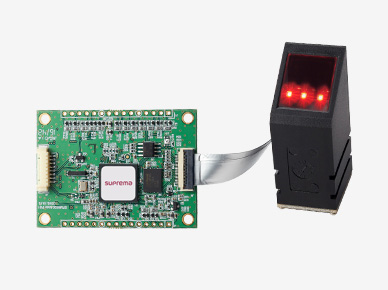

SFM6020-OP

  • Optical Sensor
  • Robust optical fingerprint sensor
  • IP65 rated waterproof front surface
  • Solid and scratch-free sensor surface
  • Reliable high quality fingerprint image for wet & dry fingers
  • Sensor surface optimized to capture the ideal fingerprint image
  • Backward compatible to SFM5020-OP

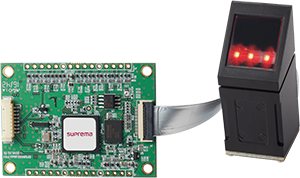

SFM6030-OC

  • Optical Sensor
  • Robust optical fingerprint sensor
  • IP65 rated waterproof front surface
  • Solid and scratch-free sensor surface
  • Reliable high quality fingerprint image for wet & dry fingers
  • Backward compatible to SFM5030-OC

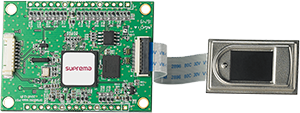

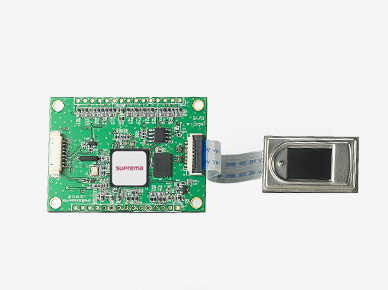

SFM6050-T2S

  • Capacitive type sensor
  • IP67 rated sensor surface with high durability
  • 3 time-stronger abrasion resistance compared to TC2S sensor
  • Reliable high quality fingerprint image
  • Backward compatible to SFM3050-TC2S

Specification

Sensor Option Optical, Capacitive
CPU 1GHz (MIPs)
Flash Memory 8MB/16MB
EER < 0.08%
Enrollment Time
(Sensor Dependent)		 < 300ms OP6/OC6
< 250ms T2S
1:1 Verification Time
(Sensor Dependent)		 < 330ms OP6/OC6
< 250ms T2s
1:1000 ID Time*
(Sensor Dependent)		 < 400ms OP6/OC6
< 320ms T2S
WSQ Image Comprssion Yes
Template Options Suprema, ISO19794-2, ANSI-378
Template Size
(Default: 384 Bytes)		 Default: 384 Bytes
256 - 384 Bytes (Configurable)
Template Capacity 5,000 @ 8MB Flash
25,000 @ 16MB Flash
Host Comm. Asynchronous serial: CMOS level (3.3V) (up to 921600 bps) USB 2.0 (up to 2M bps)
External I/O 8x Digital I/O
Fingerprint Data
Encryption		 256-bit AES
Supply Voltage 3.3/5.0VDC Regulated
Operating Temp (°C) -15 to 60 °C
Board Size
(L x W x H) (mm)		 55 x 40 x 8
Model SFM6020-OP SFM6030-OC SFM6050-T2S
Sensor Type Optical Optical Capacitive
Sensor Options OP6 OC6 T2S
Resolution (dpi) 500 500 508
Sensing Area (mm) 16.0 x 19.0 16.0 x 18.0 10.4 x 14.4
Image Size (px) 272 x 320 288 x 288 208 x 288
Finger Rotation +/- 90' +/- 90' +/- 90'
Sensor Dimension
(L x W x H) (mm)		 20.5 x 25 x 52 21 x 23 x 54 20.4 x 27 x 3.5

*Average genuine identification time including feature extraction

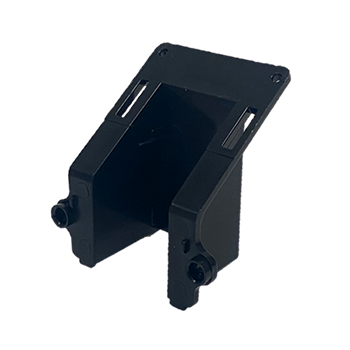

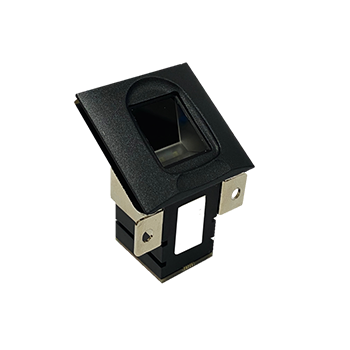

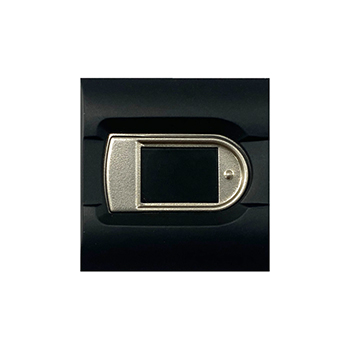

Accessory

  • SFM6020-OP

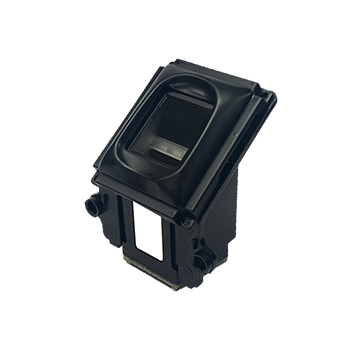

  • Housing Set

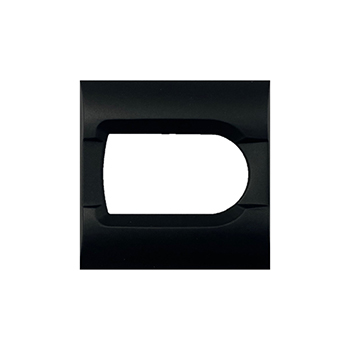

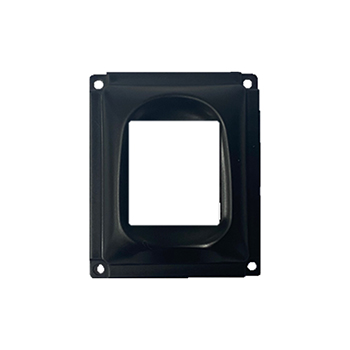

  • Housing

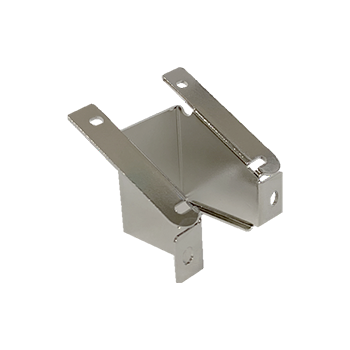

  • Bracket

  • SFM6030-OC

  • Housing Set

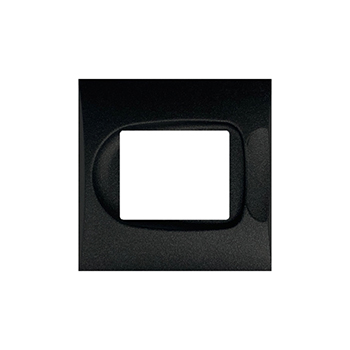

  • Housing

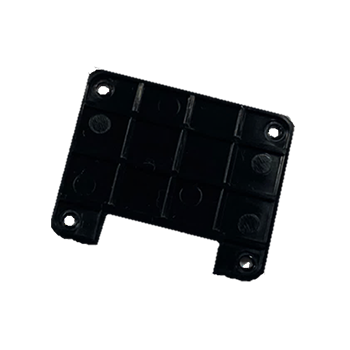

  • Bracket

  • SFM6050-T2S

  • Housing Set

  • Housing

  • Bracket

Applications

  • Access Control

  • Time and Attendance

  • Door Lock

  • Safe

  • Mobile POS

  • Vending Machine

  • IoT
