SFM5500 Series
Features Specification Accessories Applications
Contact Us 공유하기
SFM5500 is a high-end standalone fingerprint module equipped with versatile external interface including RS232, RS422/485, Wiegand, Digital I/O and LED Control, readily applicable to access control applications. SFM5500 offers comprehensive functionalities and interfaces to be used as a complete standalone fingerprint access reader by itself.

Features

  • Powerful 533MHz DSP
  • 1:1 verification in 550ms
  • Fast Power-on Time
  • Configurable Digital I/O and LED Control Ports
  • Wiegand Input & Output Ports
  • Auxiliary Communication Ports
  • 1:1,000 Identification in 700ms
  • Suprema, ISO 19794-2, ANSI 378 Template Options
  • WSQ Image Compression Algorithm certified by FBI
  • 256-bit AES Fingerprint Data Encryption
  • 8MB Flash Memory Option
  • RS232, RS422/485 Host Communication

Available Models

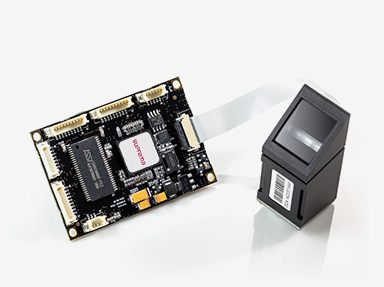

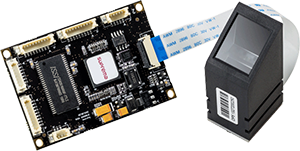

SFM5520-OP

  • Optical Sensor
  • Robust optical fingerprint sensor
  • Solid and scratch-free sensor surface
  • Reliable high quality fingerprint image for wet & dry fingers
  • Sensor surface optimized to capture the ideal fingerprint image

SFM5530-OC

  • Waterproof Optical Sensor
  • Robust optical fingerprint sensor
  • IP65 rated waterproof front surface
  • Solid and scratch-free sensor surface
  • Reliable high quality fingerprint image for wet & dry fingers

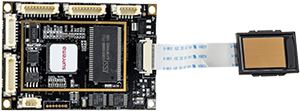

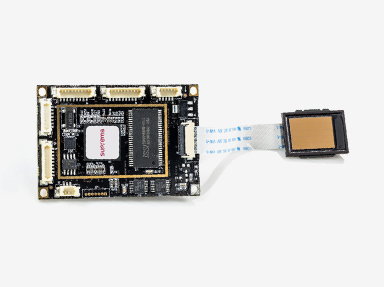

SFM5550-TC

  • UPEK TouchChip Sensor
  • Capacitive type sensor
  • PerfectPrint technology
  • Reliable high quality fingerprint image

Specification

Sensor Option Optical, Capacitive
CPU 533MHz DSP
Flash Memory 4MB (8MB Option)
EER < 0.1%
Enrollment Time
(Sensor Dependent)		 < 550ms OP5/OC4
< 600ms TC1
< 410ms TC2
1:1 Verification Time
(Sensor Dependent)		 < 550ms OP5/OC4
< 600ms TC1
< 410ms TC2
1:1000 ID Time*
(Sensor Dependent)		 < 700ms OP5/OC4
< 740ms TC1
< 550ms TC2
WSQ Image Comprssion Yes
Template Options Suprema, ISO19794-2, ANSI-378
Template Size
(Default: 384 Bytes)		 Default: 384 Bytes
256 - 384 Bytes (Configurable)
Template Capacity 9,000 @ 4 MB Flash
19,000 @ 8MB Flash
Log Capacity 12,800
Host Comm. RS232C or RS422/485 up to 460800 bps
Aux Comm. Asynchronous serial: CMOS level (3.3V) (up to 460800 bps)
Wiegand
Interface		 1x Wiegand Input, 1x Wiegand Output
External I/O 3x Digital Inputs, 3x Digital Outputs, 3x LED Outputs
Fingerprint Data
Encryption		 256-bit AES
Supply Voltage 5 VDC Regulated
Board Size
(L x W x H) (mm)		 63 x 43 x 10
Model SFM5520-OP5 SFM5530-OC4 SFM5500-TC SFM5500-TC
Sensor Type Optical Optical Capacitive Capacitive
Sensor Options OP5 OC4 TC1 TC2
Resolution (dpi) 500 500 508 508
Sensing Area (mm) 16.0 x 19.0 16.0 x 18.0 12.8 x 18.0 10.4 x 14.4
Image Size (px) 272 x 320 288 x 288 256 x 360 208 x 288
Finger Rotation +/- 90' +/- 90' +/- 90' +/- 90'
Sensor Dimension
(L x W x H) (mm)		 20.5 x 25 x 52 21 x 23 x 54 20.4 x 27 x 3.5 20.4 x 27 x 3.5

*Average genuine identification time including feature extraction

Accessory

  • SFM5520-OP

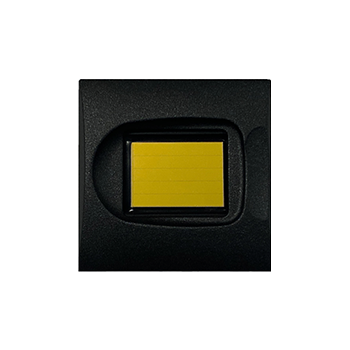

  • Housing Set

  • Housing

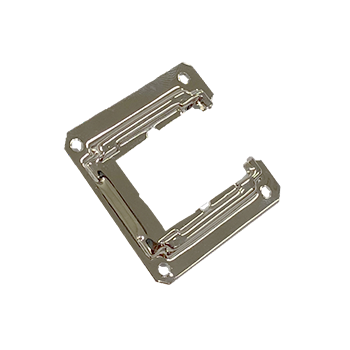

  • Bracket

  • SFM5530-OC

  • Housing Set

  • Housing

  • Bracket

  • SFM5550-TC

  • Housing Set

  • Housing

  • Bracket

Applications

  • Access Control

  • Time and Attendance

  • Door Lock

  • Safe

  • Mobile POS

  • Vending Machine

  • IoT
